Oil Cooler Water Pipe Component Installation Note

WARNING: This page is about a different car, the 2013 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the oil cooler water pipe component in the order shown in the figure.

    Tightening torque 8-11 N.m {82-112 kgf.cm, 71-97 in.lbf}

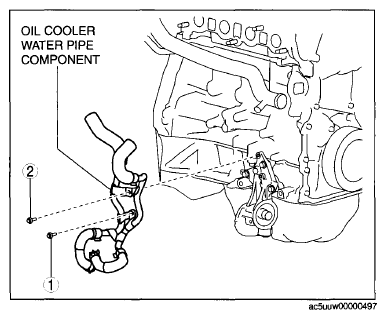

    Fig 1: Identifying Oil Cooler Water Pipe And Mounting Bolts Tightening Sequence
    G09074335
