Oil Pump Removal/Installation
>>
SKYACTIV-G 2.0
>>
Notes
SKYACTIV-G 2.0: Notes

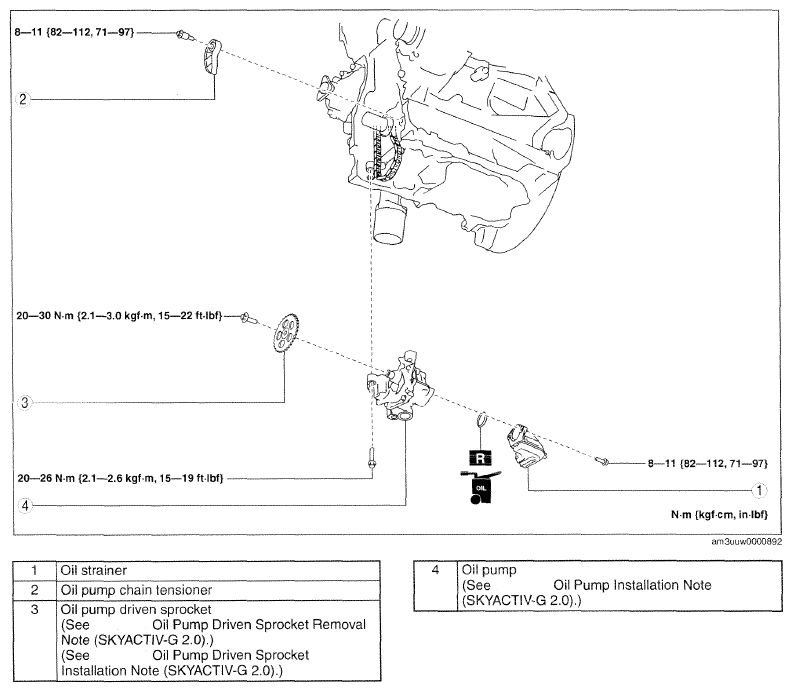

Fig 1: Oil Pump, Strainer, Chain Tensioner And Driven Sprocket (Skyactiv-G 2.0) With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
