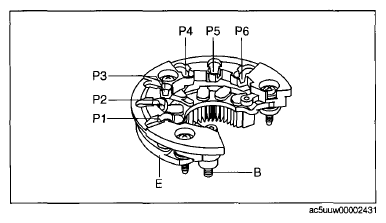

Rectifier (Using an analog circuit tester)
- Inspect for continuity of the diodes using an analog circuit tester.
- If not as specified, replace the rectifier.
RECTIFIER SPECIFICATION
| Negative |
Positive |
Continuity |
| E |
P1, P2, P3, P4, P5, P6 |
Yes |
| B |
No |
| P1, P2, P3, P4, P5, P6 |
E |
No |
| B |
Yes |
