Shift-Lock System

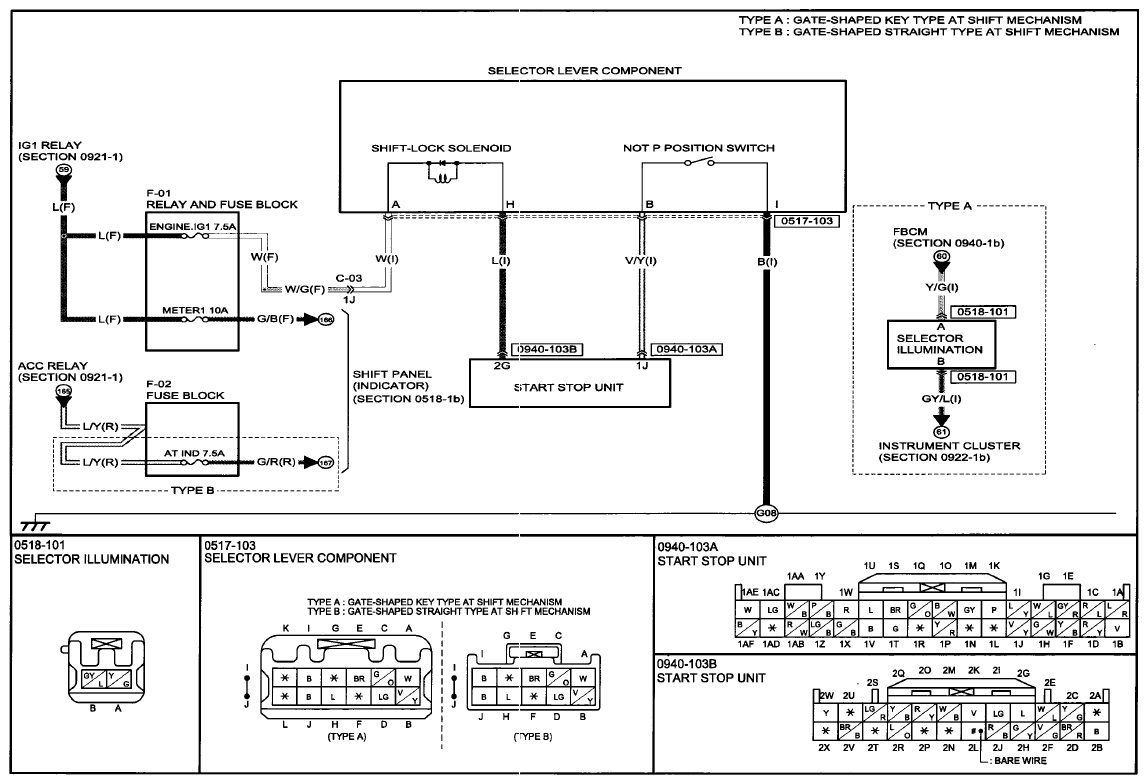

Fig 1: Shift-Lock System Communication Diagram with Connector End View(0518-1A)
G09761915Courtesy of MAZDA MOTORS CORP.

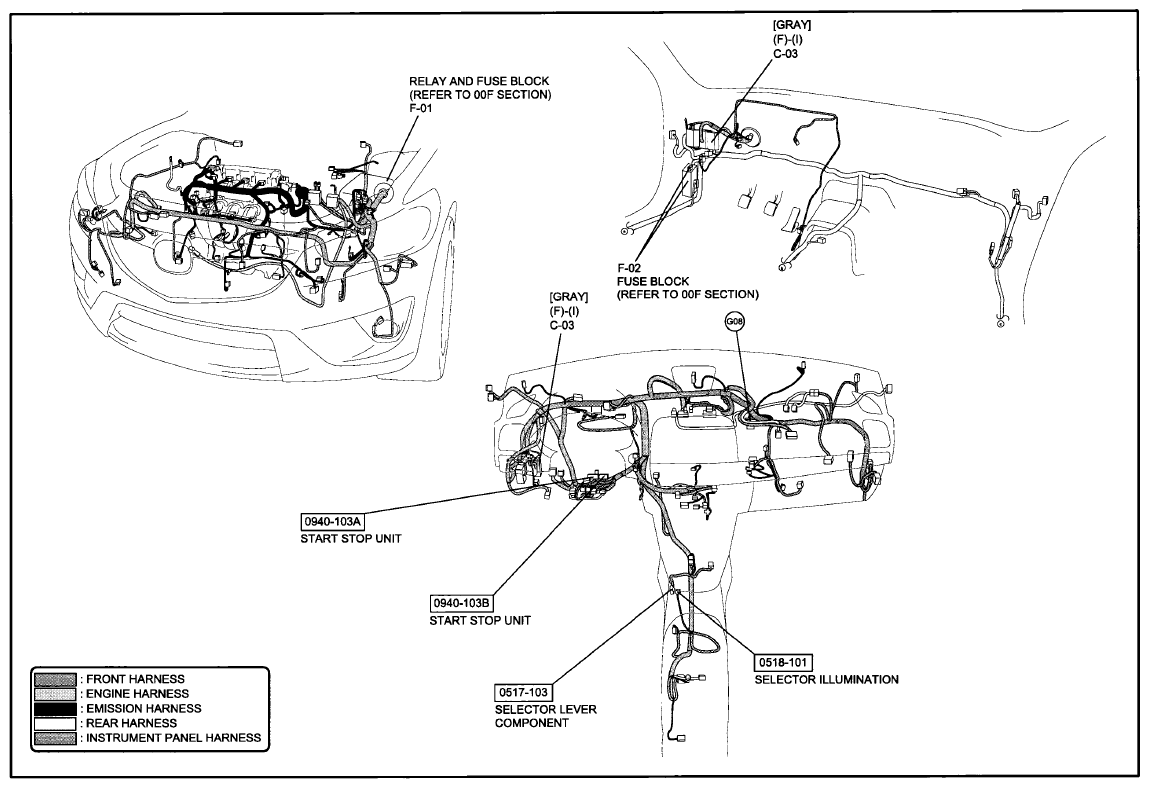

Fig 2: Shift-Lock System Wiring Harness Connectors (0518-1A)
G09761916Courtesy of MAZDA MOTORS CORP.

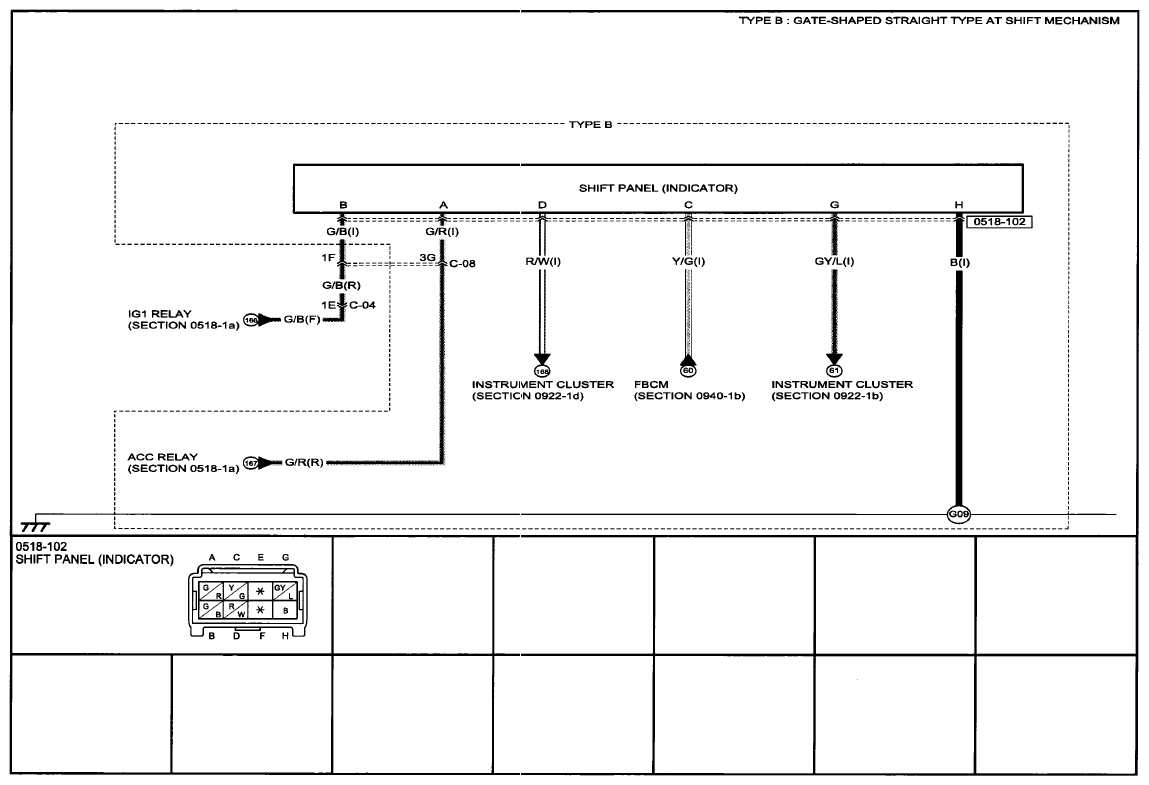

Fig 3: Shift-Lock System Communication Diagram with Connector End View (0518-1B)
G09761917Courtesy of MAZDA MOTORS CORP.

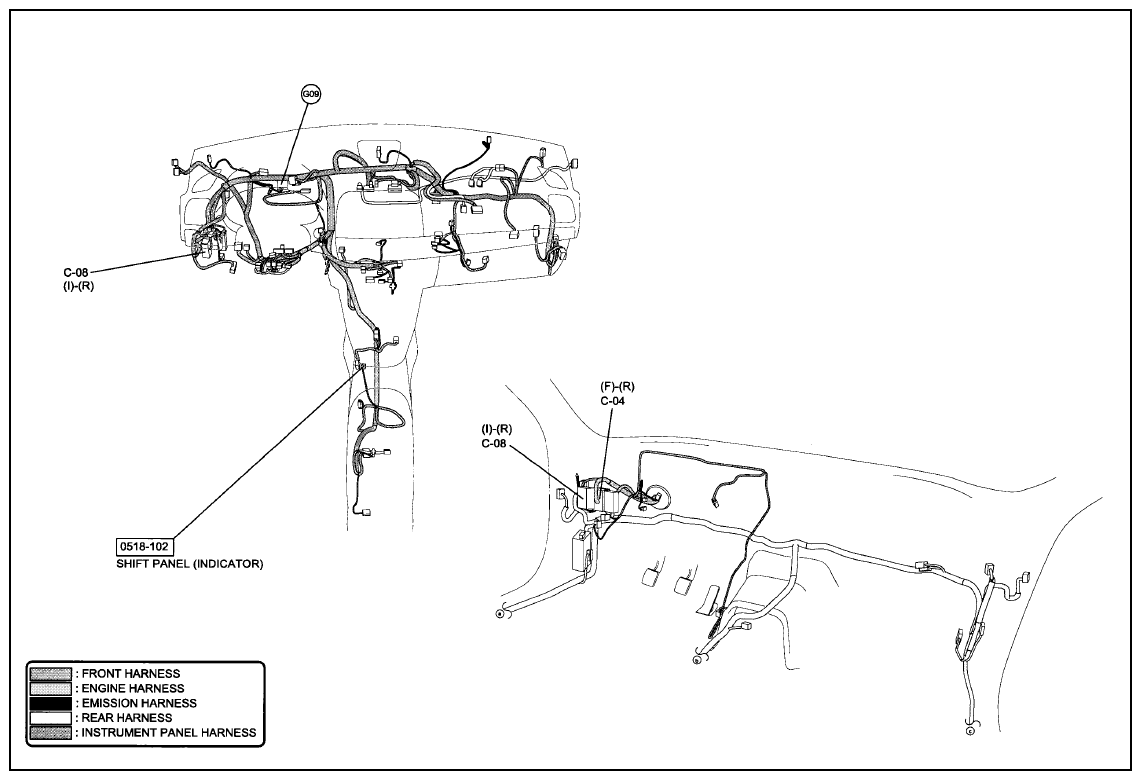

Fig 4: Shift-Lock System Wiring Harness Connectors (0518-1B)
G09761918Courtesy of MAZDA MOTORS CORP.
