Fuse Box

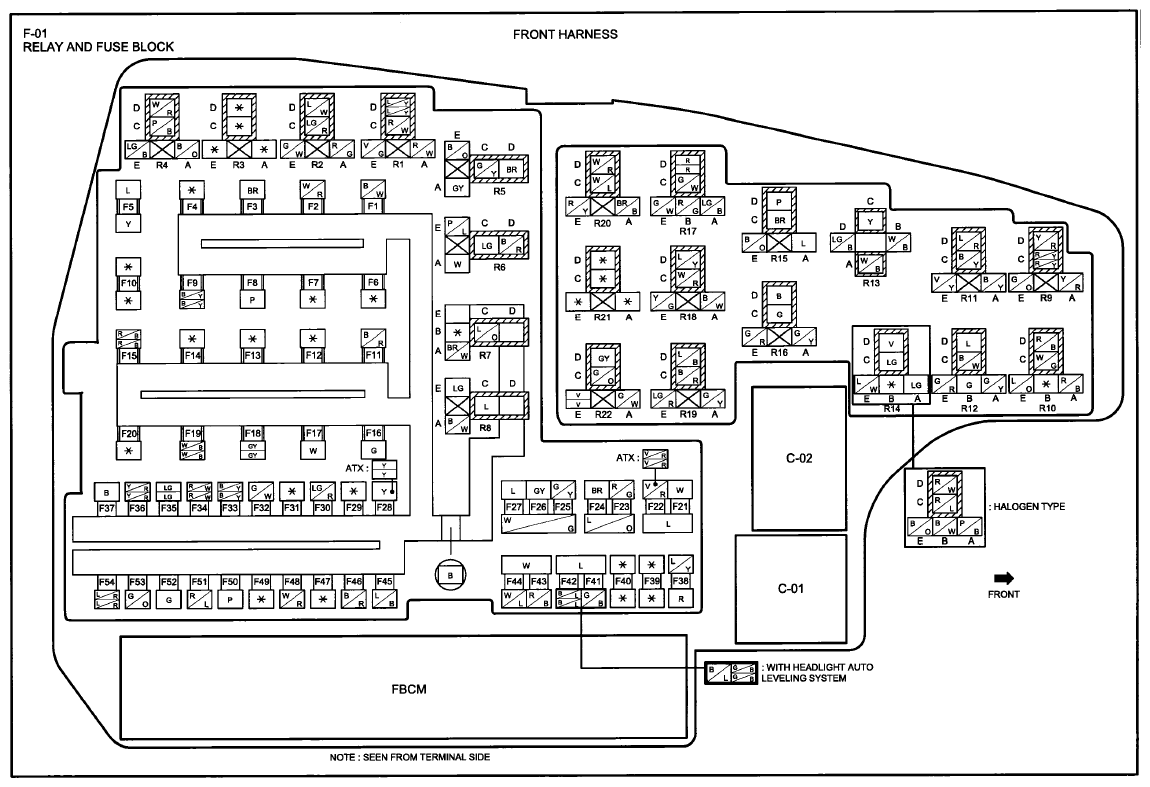

Fig 1: Fuse Box Connector List (00F-1A)
G09761854Courtesy of MAZDA MOTORS CORP.

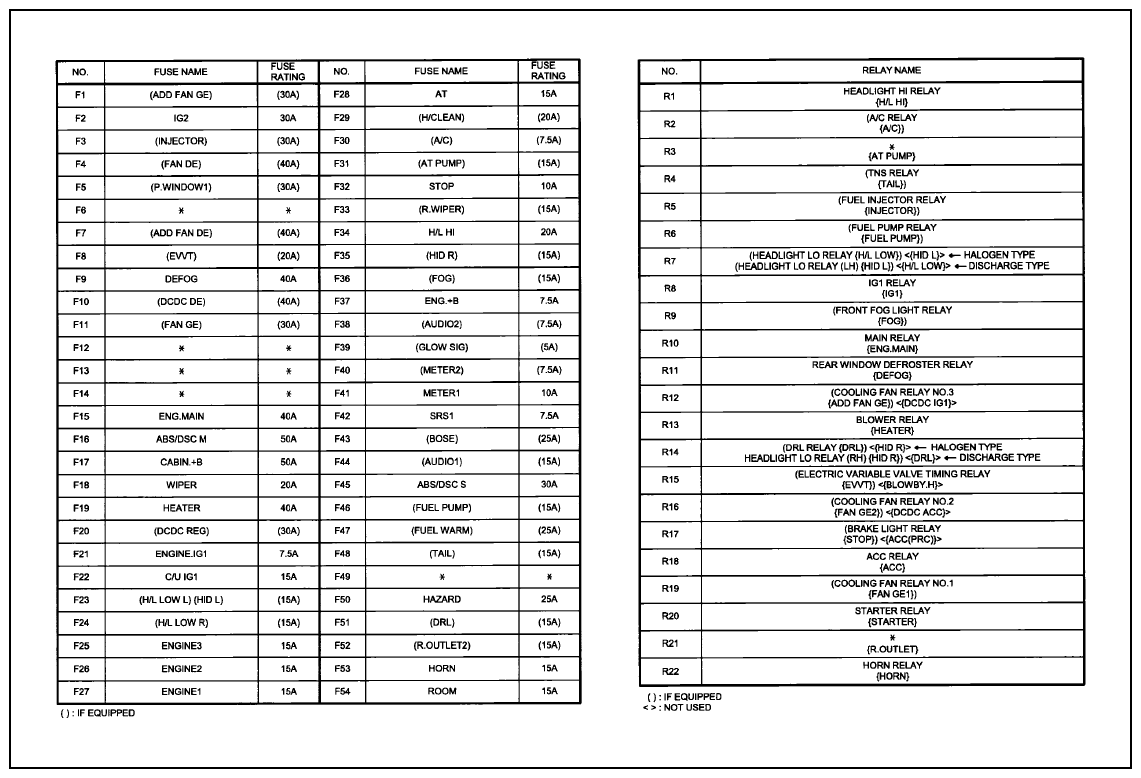

Fig 2: Fuse Box Connector List (00F-1B)
G09761855Courtesy of MAZDA MOTORS CORP.

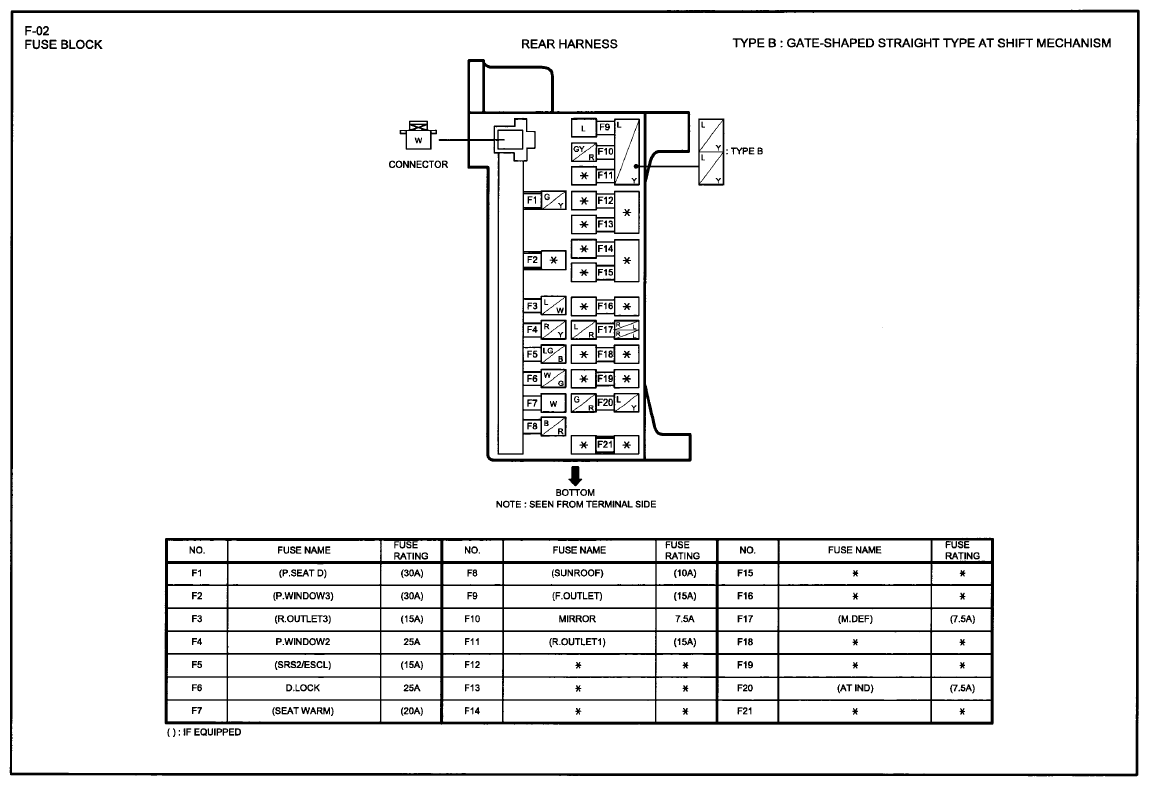

Fig 3: Fuse Box Connector List (00F-2)
G09761856Courtesy of MAZDA MOTORS CORP.

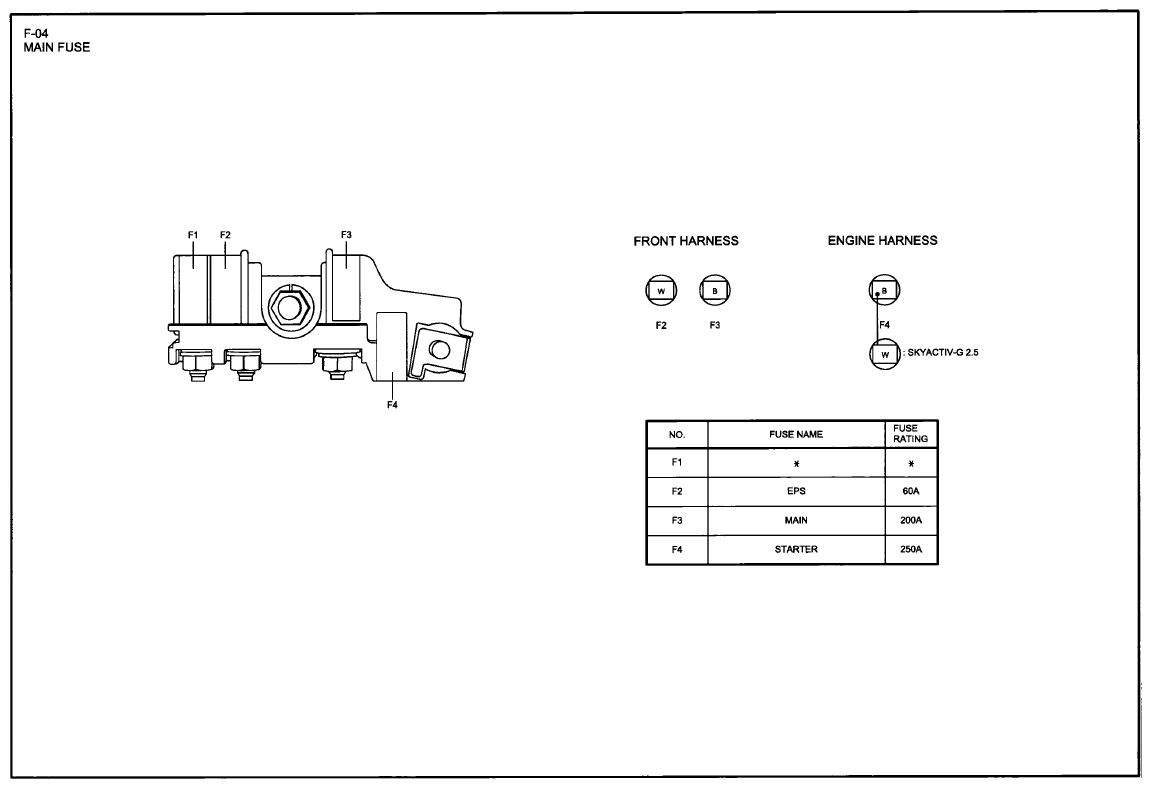

Fig 4: Fuse Box Connector List (00F-4)
G09761857Courtesy of MAZDA MOTORS CORP.
