Front Wheel Hub Bolt Replacement

  1. Remove the brake calliper component from the steering knuckle and suspend it out of the way using a cable.
  2. Remove the disc plate.
  3. Remove the wheel hub bolt using the SST  as shown in the figure.
  4. Place a new wheel hub bolt in the wheel hub.
    Fig 1: Removing Wheel Hub Bolt Using SST
    G09074834Courtesy of MAZDA MOTORS CORP.
  5. Install the wheel hub by placing a proper sized washer on the hub, and tightening the nut as shown in the figure.

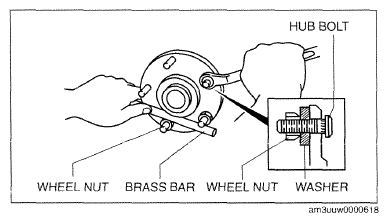

    Fig 2: Installing Wheel Hub Using Tool
    G09758979Courtesy of MAZDA MOTORS CORP.
