Rear Hinge Installation Note

  1. While moving the rear seat back in the direction of arrow shown in the figure, install the rear hinge to pin E.

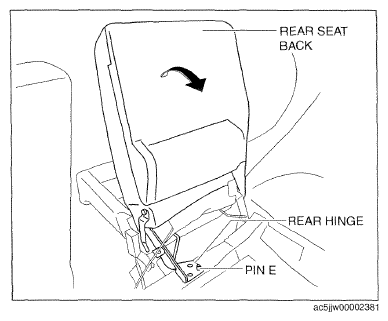

    Fig 1: Installing Rear Hinge
    G09761270Courtesy of MAZDA MOTORS CORP.
