Selector Cable Adjustment

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the selector lever knob, (type B) (See SELECTOR LEVER REMOVAL/INSTALLATION (TYPE B) .)
  3. Remove the shift panel. (See SHIFT PANEL REMOVAL/INSTALLATION .)
  4. Remove the screws from the bracket.
  5. Remove the bracket from the rear console. I screw bracket
  6. Shift the selector lever to the P position.
    Fig 1: Identifying Selector Lever Bracket And Screws
    G09759707Courtesy of MAZDA MOTORS CORP.
  7. Pull out the safety lock in the direction of the arrow (1) shown in the figure, pull out the lock piece in the direction of the arrow (2) shown in the figure, and release the lock. (See SELECTOR CABLE (SELECTOR LEVER SIDE) INSTALLATION NOTE .)
    Fig 2: Pulling Out Safety Lock
    G09759695Courtesy of MAZDA MOTORS CORP.
  8. Set the manual shaft to the P position.

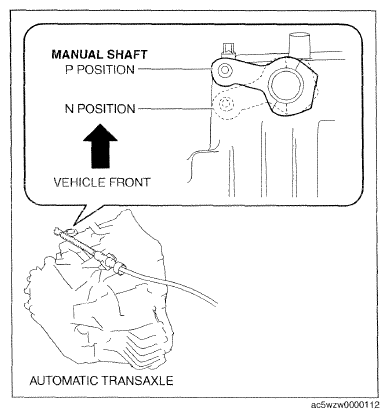

    Fig 3: Setting Manual Shaft To P Position
    G09759709Courtesy of MAZDA MOTORS CORP.
  9. Press in the lock piece in the direction of the arrow (1) shown in the figure, press in the safety lock in the direction of the arrow (2) shown in the figure, and lock it.
  10. Perform the procedure in the reverse order of Step  1 to  5 to install the removed part.
  11. Perform the selector lever inspection. (See SELECTOR LEVER INSPECTION .)

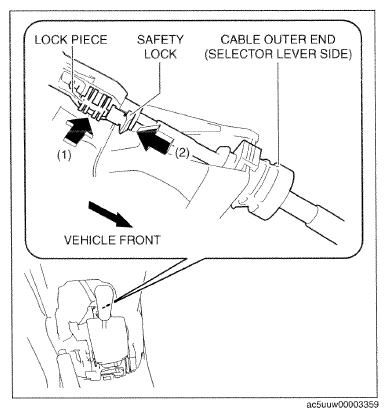

    Fig 4: Pressing Safety Lock
    G09759710Courtesy of MAZDA MOTORS CORP.
