Driver-Side Air Bag Module Removal/Installation (Standard Deployment Control System): Notes

WARNING:

• Handling the air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS (STANDARD DEPLOYMENT CONTROL SYSTEM) .) (See AIR BAG SYSTEM SERVICE CAUTIONS (STANDARD DEPLOYMENT CONTROL SYSTEM) .)

NOTE:

• The driver-side air bag module is installed to the steering wheel by engaging the tab.

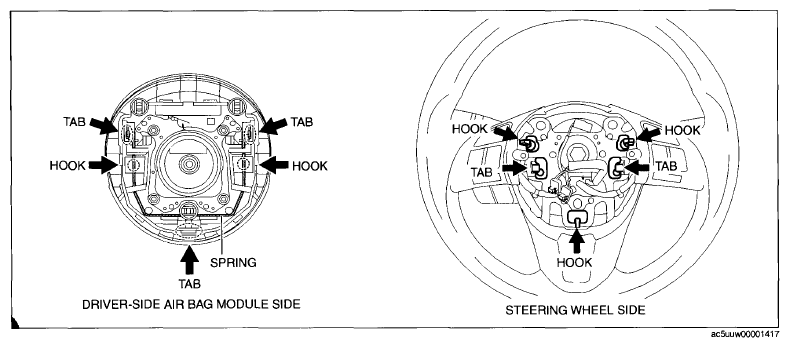

Fig 1: Locating Driver-Side Air Bag Module Tab And Hooks

Courtesy of MAZDA MOTORS CORP.
