Blower Unit Disassembly/Assembly

CAUTION:
  • Apply only the specified grease to the link. Otherwise abnormal noise or improper operation may result.
  1. Disassemble in the order indicated in the table.

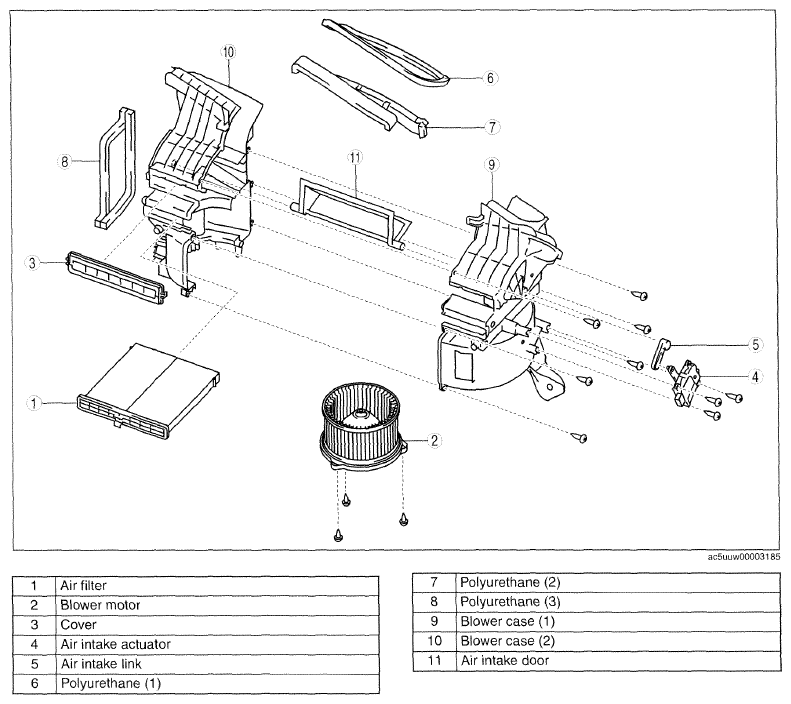

    Fig 1: Disassembly/Assembly View Of Blower Unit
    G09759882Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
