Front Combination Light Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2013 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order shown in the figure.

    Halogen type

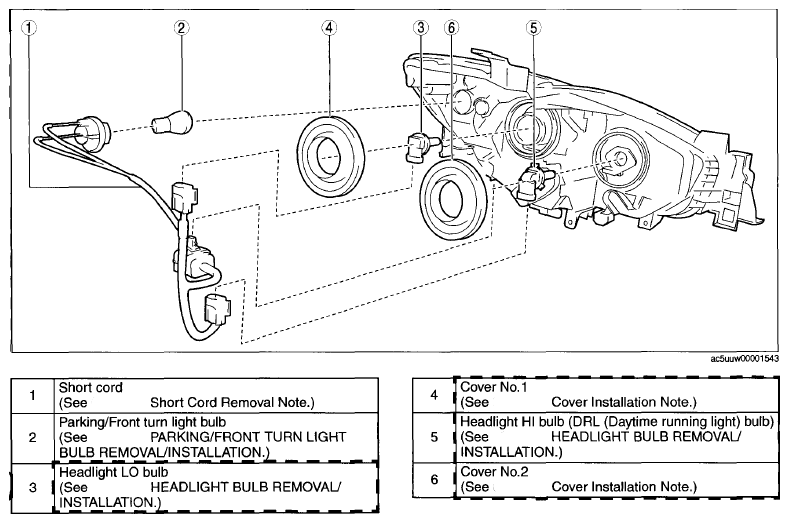

    Fig 1: Disassembled View Of Front Combination Light (Halogen Type)
    G09077318

    Discharge type

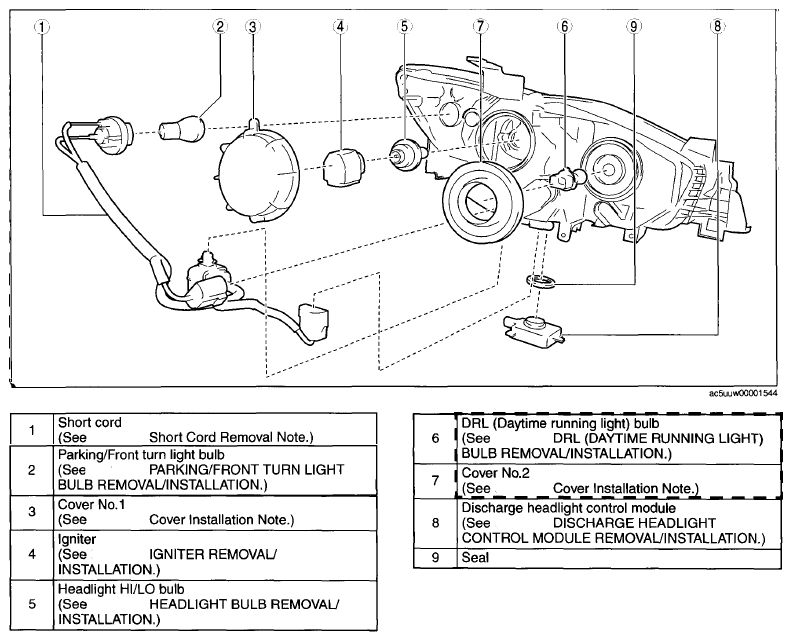

    Fig 2: Disassembled View Of Front Combination Light (Discharge Type)
    G09077319
  2. Assemble in the reverse order of disassembly.
