Manual Transaxle Location Index

WARNING: This page is about a different car, the 2013 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

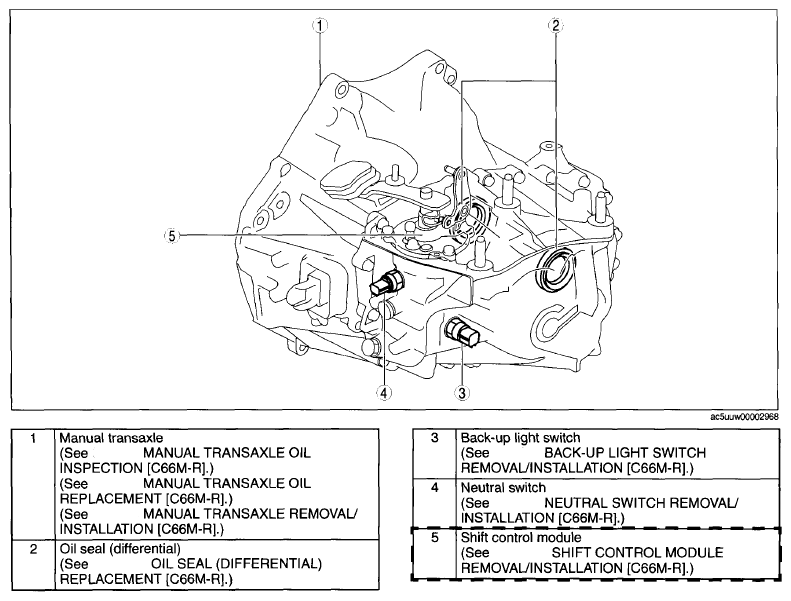

Fig 1: Identifying Manual Transaxle, Oil Seal, Back Up Light, Neutral Switch And Shift Control Module
G09075330
