Caliper (Front) Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2013 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of removal.

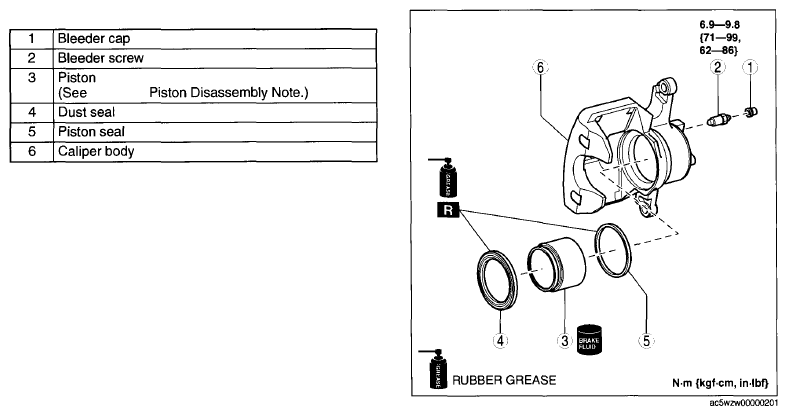

    Fig 1: Front Bleeder Cap, Screw, Caliper Body, Piston And Dust Seal With Torque Specifications
    G09075212
