U.S.A. And CANADA: Notes

  1. Level the vehicle.
  2. Complete the "BEFORE SERVICE PRECAUTION". (See BEFORE SERVICE PRECAUTION .)
  3. Drain the fuel. (See FUEL DRAINING PROCEDURE .)
  4. Open the fuel-filler lid.
  5. Remove in the order indicated in the table.

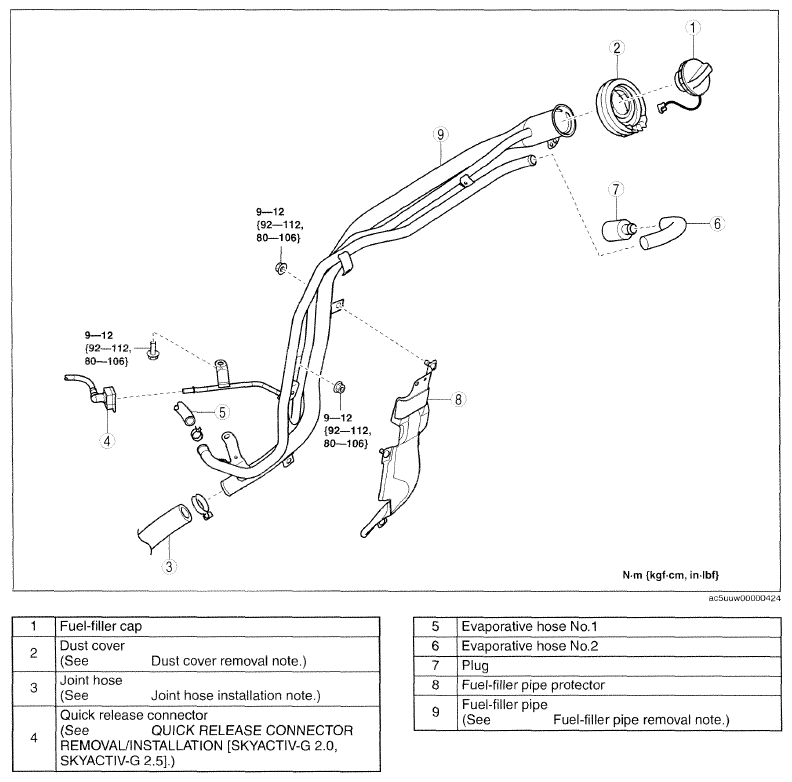

    Fig 1: Fuel System Components Location - U.S.A. And Canada With Torque Specifications
    G09758487Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
  7. Complete the "AFTER SERVICE PRECAUTION". (See AFTER SERVICE PRECAUTION .)
