Except U.S.A. And CANADA: 2WD: Notes

  1. Level the vehicle.
  2. Complete the "BEFORE SERVICE PRECAUTION". (See BEFORE SERVICE PRECAUTION .)
  3. Drain the fuel. (See FUEL DRAINING PROCEDURE .)
  4. Using the following procedure:

    6:4 split type

    1. Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)

    4:2:4 split type

    1. Set the rear seat aside as shown in the figure. (See REAR SEAT REMOVAL/INSTALLATION .)
      Fig 1: Identifying Main Side Rear Seat Cushion
      G09074861Courtesy of MAZDA MOTORS CORP.
  5. Partially peel back the floor mat as shown in the figure.
    Fig 2: Identifying Floor Mat
    G09074862Courtesy of MAZDA MOTORS CORP.
  6. Remove the service hole cover.
  7. Disconnect the following parts:
  8. Remove the floor under cover. (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
  9. Disconnect the HO2S connector.
  10. Remove the TWC and HO2S as a single unit. (See EXHAUST SYSTEM REMOVAL/INSTALLATION .)
  11. Remove in the order indicated in the table.
  12. Install in the reverse order of removal.
    Fig 3: Identifying Service Hole Cover
    G09074863Courtesy of MAZDA MOTORS CORP.
  13. Complete the "AFTER SERVICE PRECAUTION". (See AFTER SERVICE PRECAUTION .)

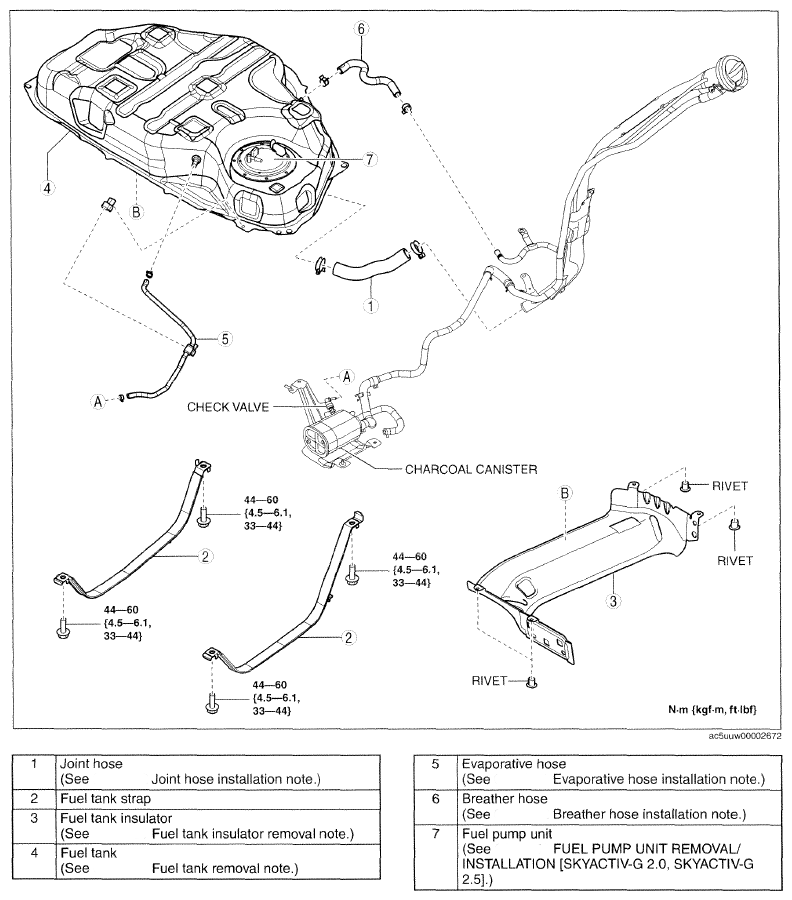

    Fig 4: Exploded View Of Fuel System With Torque Specifications
    G09758450Courtesy of MAZDA MOTORS CORP.
