CX-5 Touring, AWD
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Auxiliary Emission Control Systems
>>
Emission System
>>
Emission System Location Index
>>
Engine Compartment Side
Engine Compartment Side

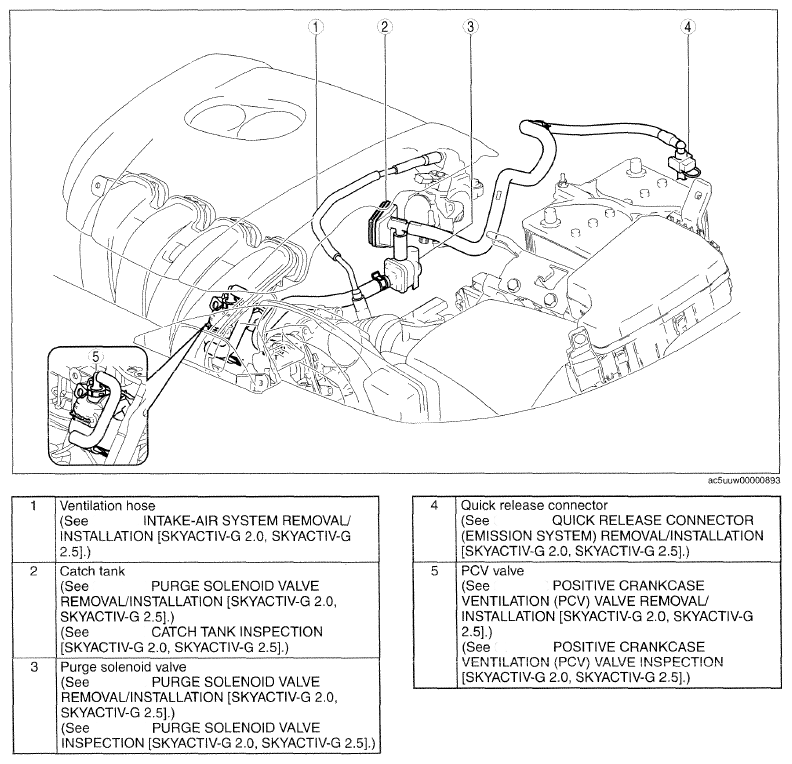

Fig 1: Emission System Components Location - Engine Compartment Side (Skyactiv-G 2.0, Skyactiv-G 2.5)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
