Drive Belt Auto Tensioner Installation Note

CAUTION:

To allow the drive belt auto tensioner to function correctly, always bleed the air from the drive belt auto tensioner using the following procedure after assembling the drive belt auto tensioner.

Install the drive belt auto tensioner to the engine.
CAUTION:
- To prevent damage to the drive belt auto tensioner, do not apply excessive torque after the tensioner moves full-stroke.
Insert the wrench into the cast hexagon on the drive belt auto tensioner, move the drive belt auto tensioner up and down at full-stroke three times to bleed the air.
NOTE:
- By moving the drive belt auto tensioner up and down full-stroke three times, the piston inside the tensioner moves to bleed the air.

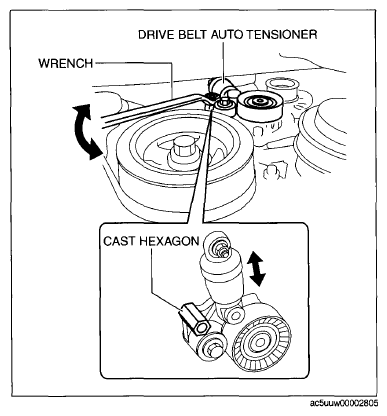

Fig 1: Inserting Wrench Into Cast Hexagon On Drive Belt Auto Tensioner
Courtesy of MAZDA MOTORS CORP.
