Brake System
>>
Dynamic Stability Control
Dynamic Stability Control

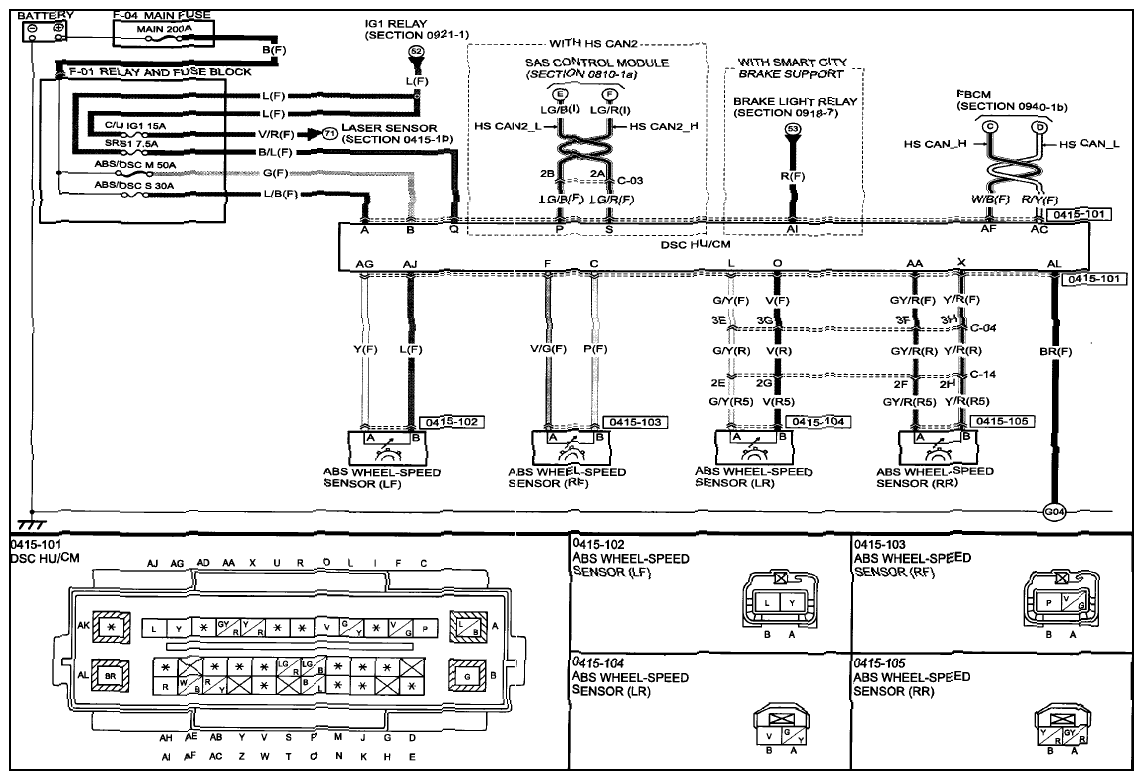

Fig 1: Dynamic Stability Control Communication Diagram with Connector End View (0415-1A)
Courtesy of MAZDA MOTORS CORP.

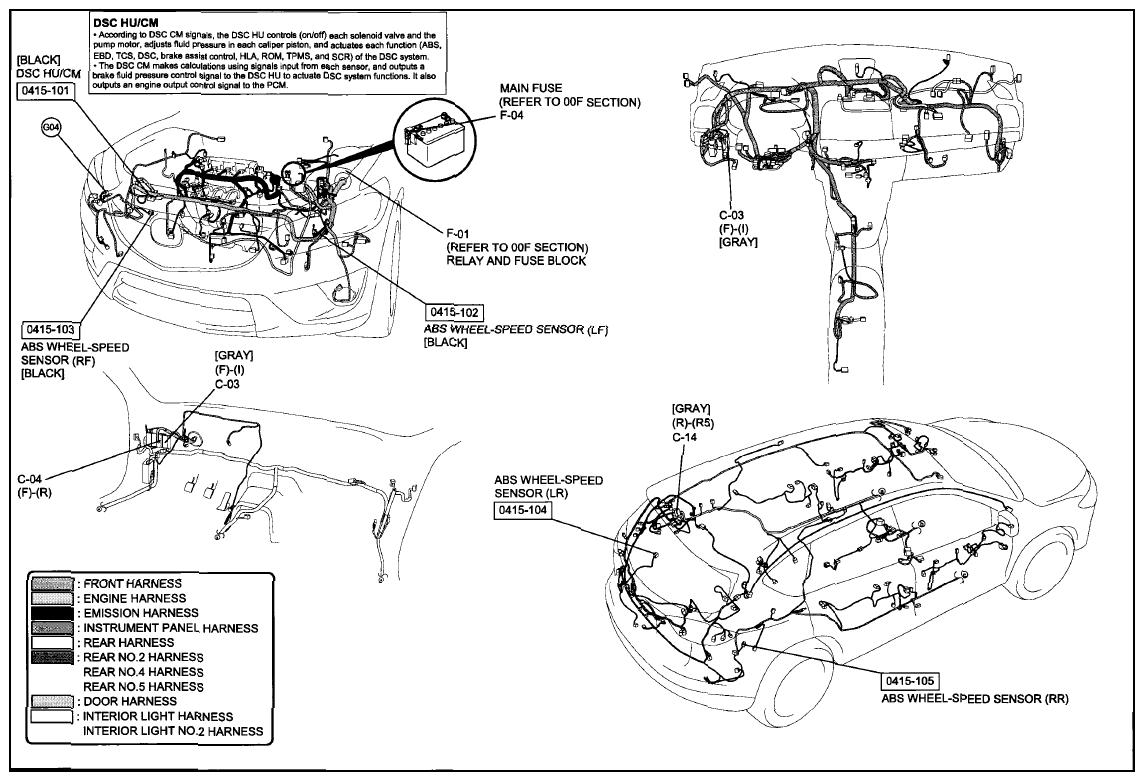

Fig 2: Dynamic Stability Control Wiring Harness Connectors (0415-1A)
Courtesy of MAZDA MOTORS CORP.

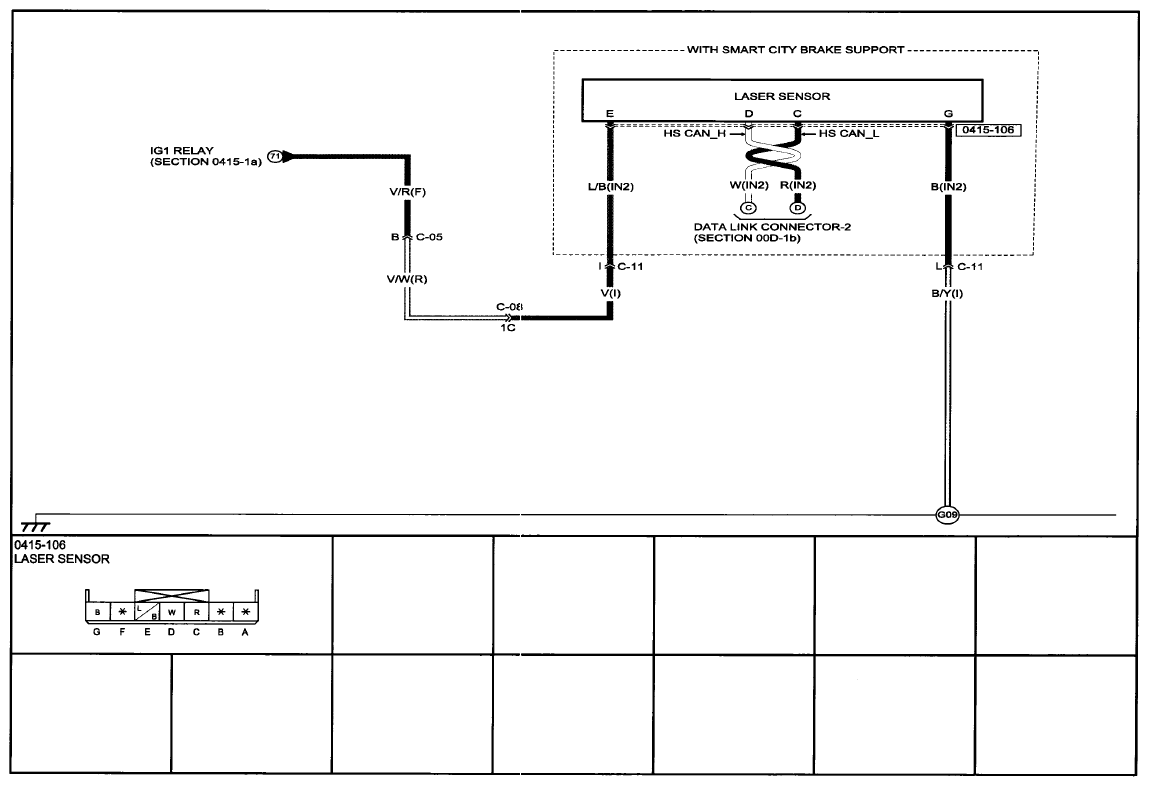

Fig 3: Dynamic Stability Control Communication Diagram with Connector End View (0415-1B)
Courtesy of MAZDA MOTORS CORP.

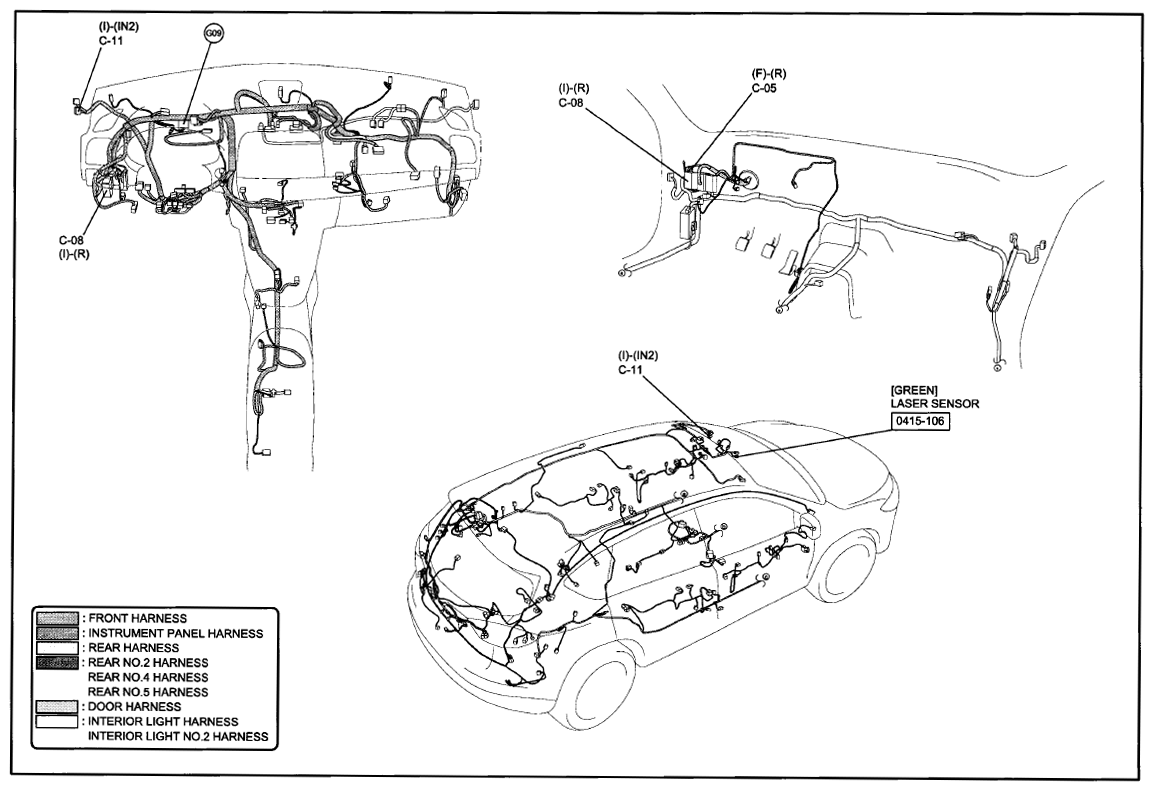

Fig 4: Dynamic Stability Control Wiring Harness Connectors (0415-1B)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
