Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Wiring System
>>
Data Link Connector
Data Link Connector

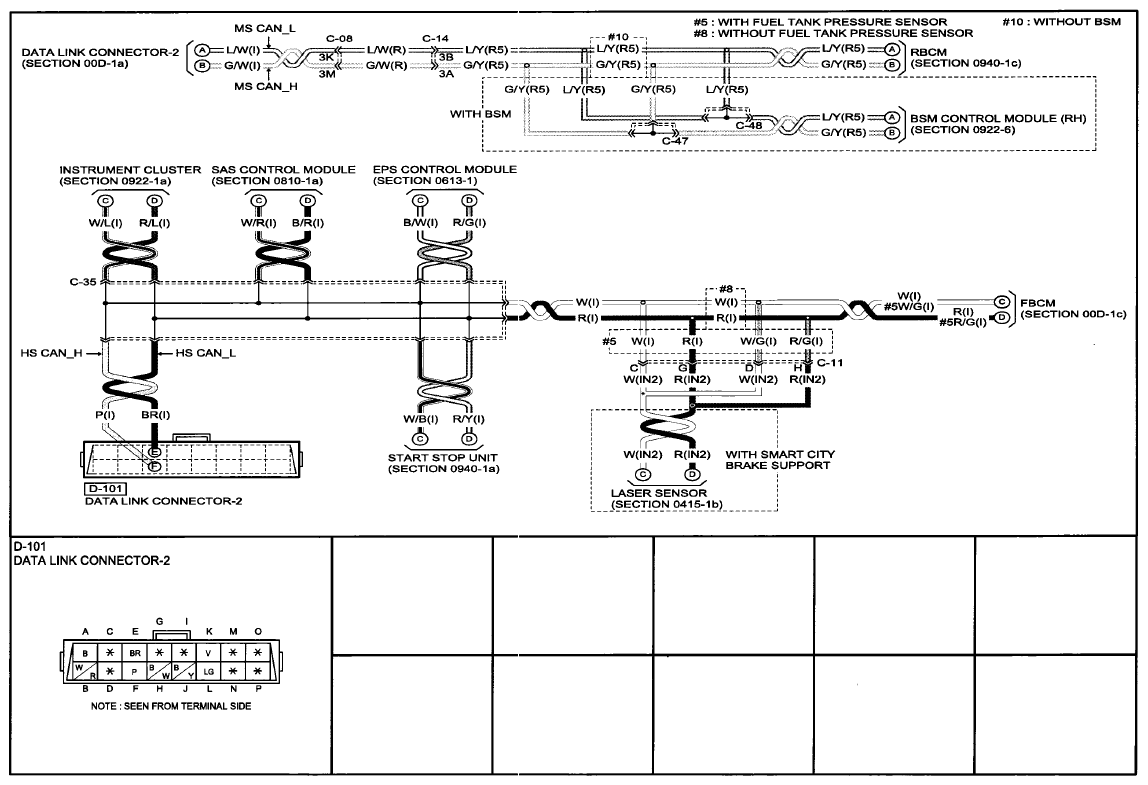

Fig 1: Data Link Connector Communication Diagram with Connector End View (00D-1A)
Courtesy of MAZDA MOTORS CORP.

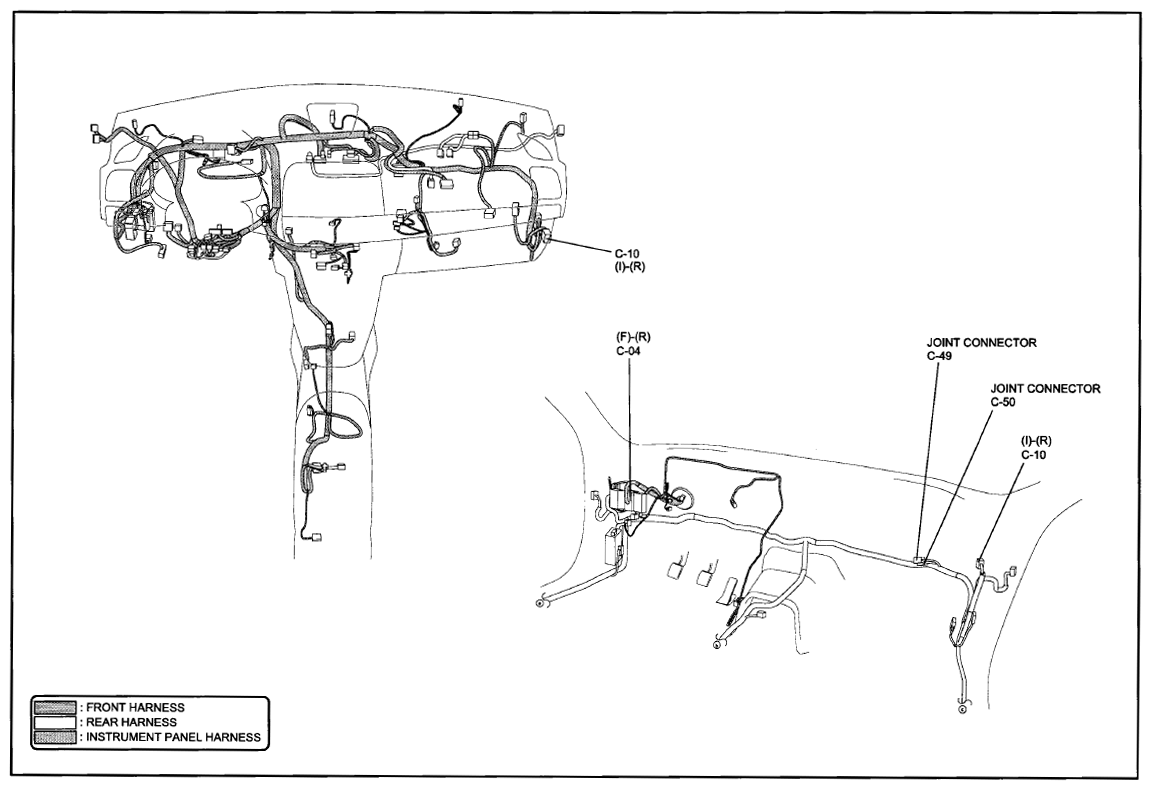

Fig 2: Data Link Connector Wiring Harness (00D-1A)
Courtesy of MAZDA MOTORS CORP.

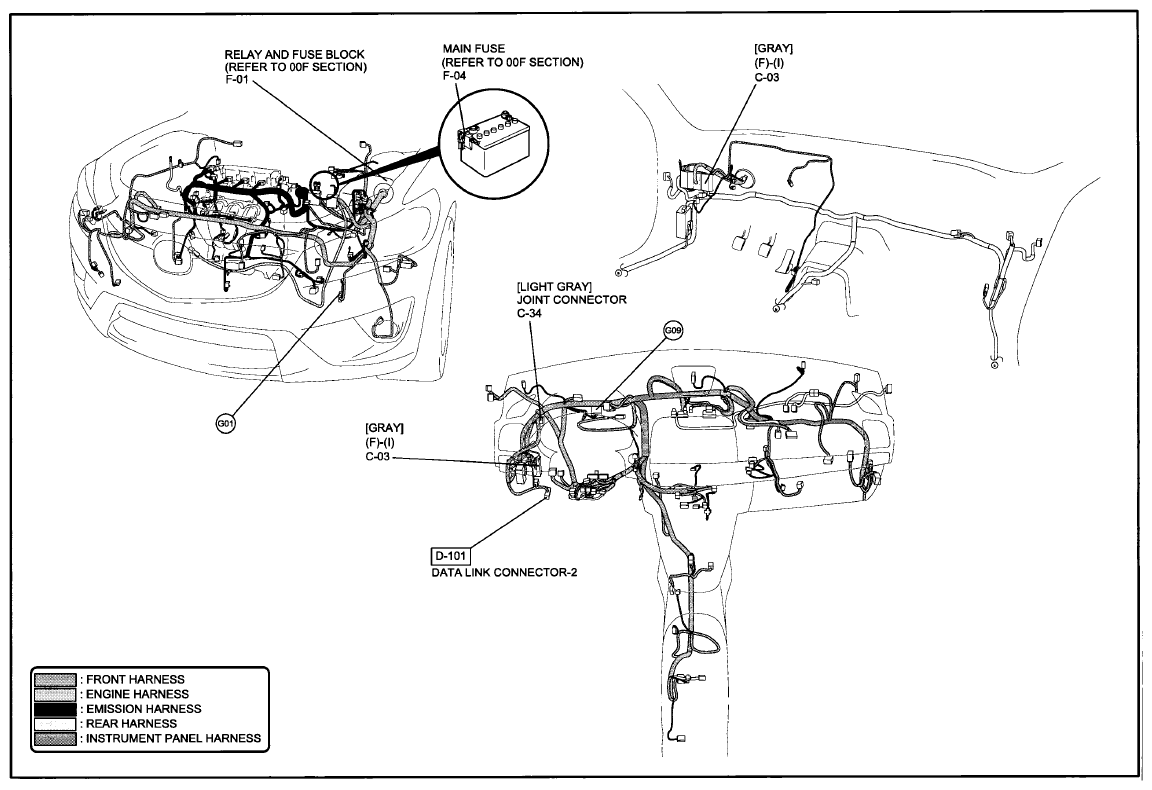

Fig 3: Data Link Connector Communication Diagram with Connector End View (00D-1B)
Courtesy of MAZDA MOTORS CORP.

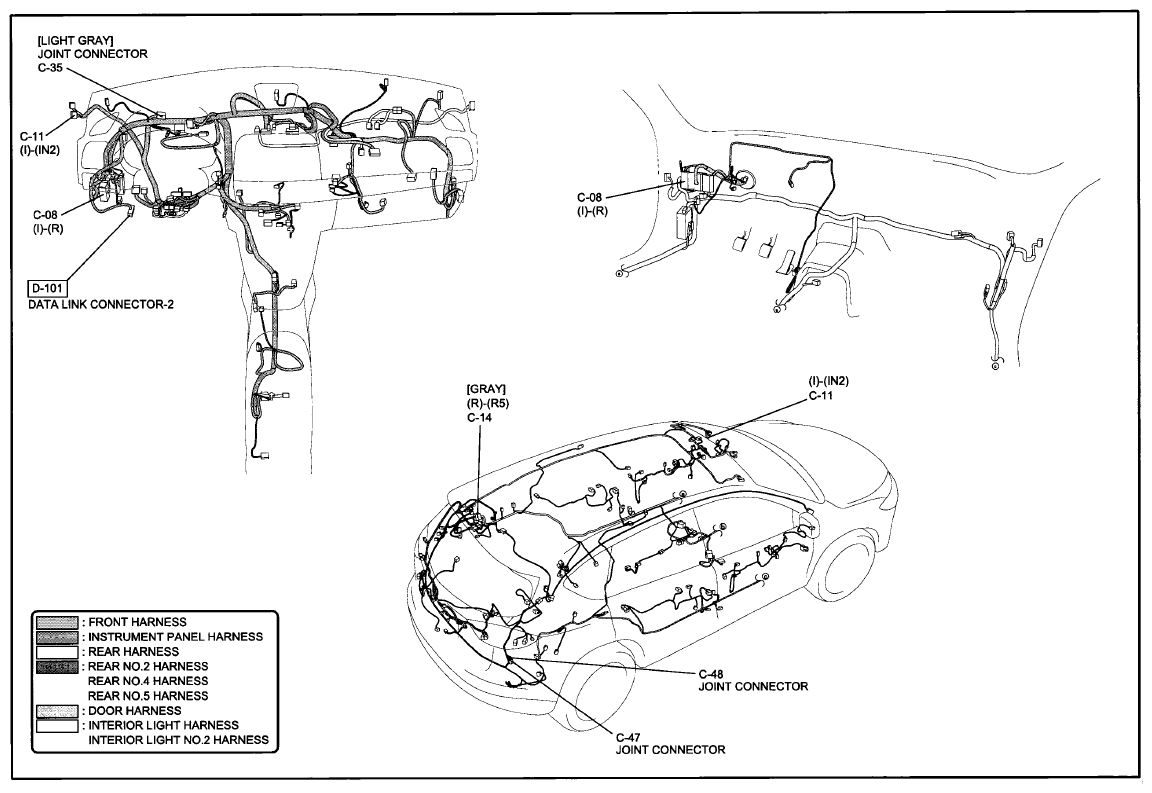

Fig 4: Data Link Connector Wiring Harness (00D-1B)
Courtesy of MAZDA MOTORS CORP.

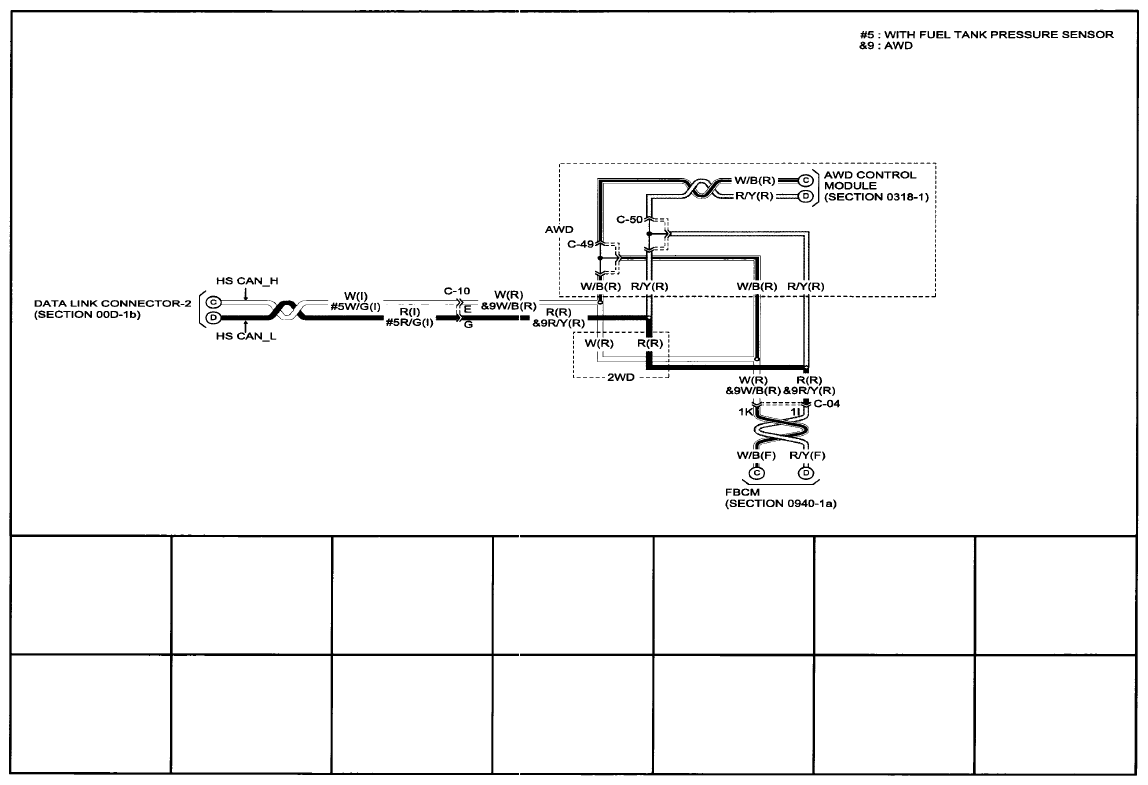

Fig 5: Data Link Connector Communication Diagram (00D-1C)
Courtesy of MAZDA MOTORS CORP.
Fig 6: Data Link Connector Wiring Harness (00D-1C)
Courtesy of MAZDA MOTORS CORP.
