Request Switch (Liftgate) And LF Control Unit Connector End View

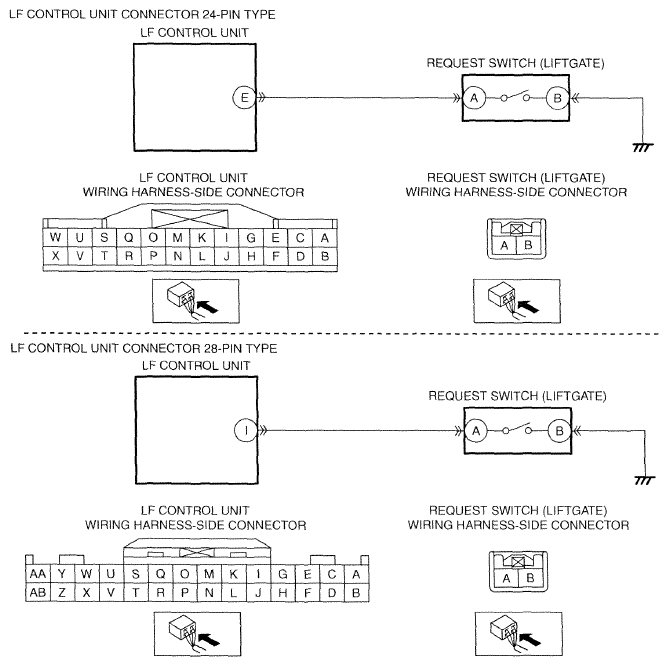

Fig 1: Request Switch (Liftgate) And LF Control Unit Connector End View
G09760409Courtesy of MAZDA MOTORS CORP.
