Front Combination Light Connector End View

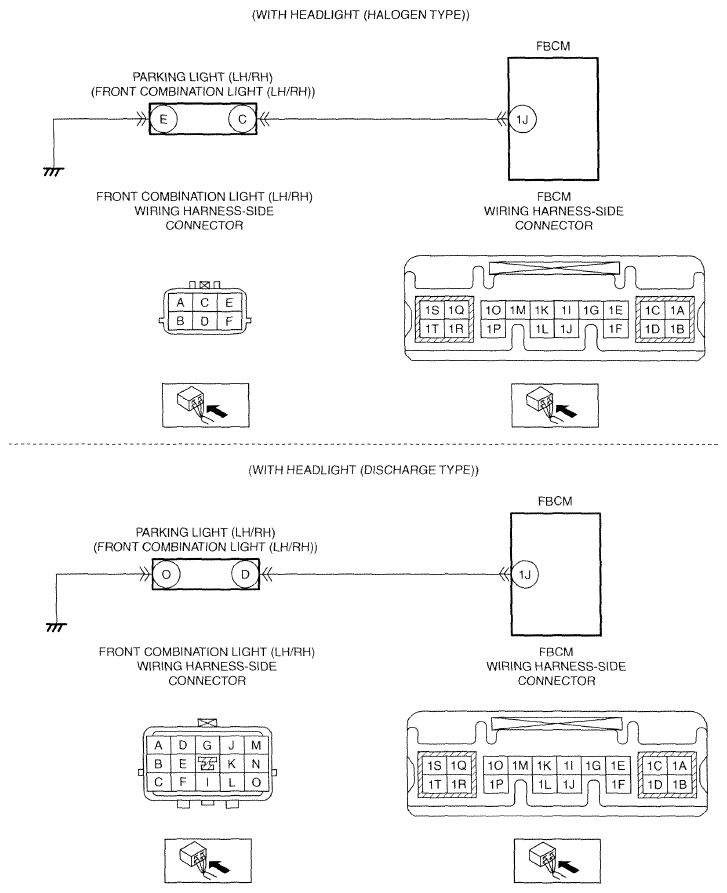

Fig 1: Front Combination Light Connector End View

G09760828

Courtesy of MAZDA MOTORS CORP.
