Driver-Side Side Air Bag Module Connector End View

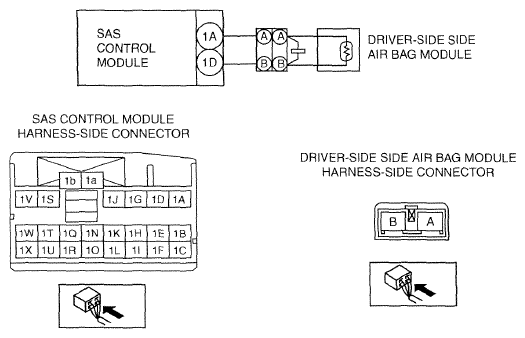

Fig 1: Driver-Side Side Air Bag Module Connector End View

G09760072

Courtesy of MAZDA MOTORS CORP.
