DSC HU/CM Connector Installation Note

  1. Connect the connector and pull the lock lever up in the direction of the arrow.
  2. After connecting the connector, verify that the connector cover is completely pushed in.

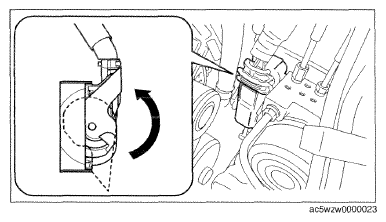

    Fig 1: Installing DSC HU/CM Connector
    G09759297Courtesy of MAZDA MOTORS CORP.
