Power Window Motor Inspection: Rear

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the power window motor connector.
  4. Apply battery positive voltage and connect the ground to power window motor terminals E and F, and then inspect the power window motor operation.

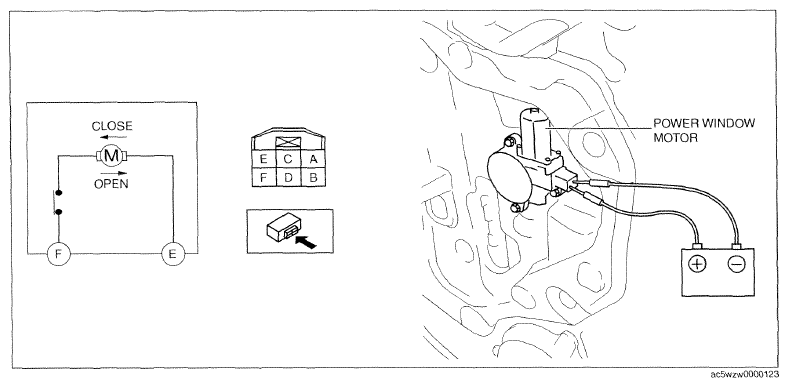

    Fig 1: Inspecting Power Window Motor (Rear) and Connector End View
    G09761084Courtesy of MAZDA MOTORS CORP.
    • If the power window motor does not operate as indicated in the table, replace it.
      Operation Terminal
      E F
      Close B+ Ground
      Open Ground B+
