Front Passenger Side

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
  3. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  4. Disconnect the power window motor connector.
  5. Apply battery positive voltage and connect the ground to power window motor terminals E and F, and then inspect the power window motor operation.

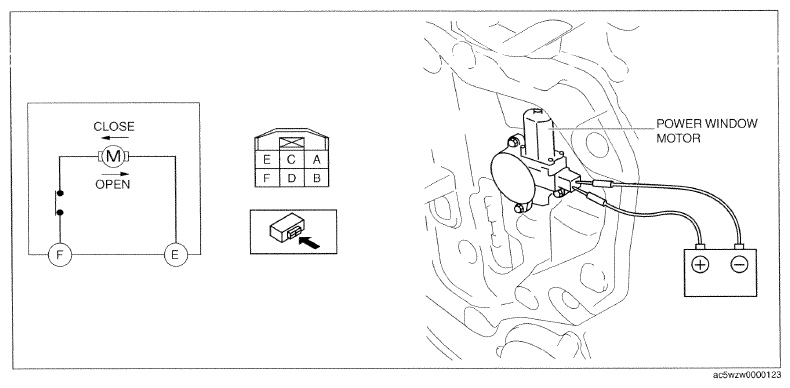

    Fig 1: Power Window Motor - Circuit Diagram (Front Passenger Side) And Connector End View
    G09761083Courtesy of MAZDA MOTORS CORP.
    • If the power window motor does not operate as indicated in the table, replace it.
      Operation Terminal
      E F
      Close B+ Ground
      Open Ground B+
