Front Seat Rail Cover Removal/Installation

  1. Detach hook A while pulling the front seat rail cover in the direction of the arrow (1) and remove it in the direction of arrow (2) shown in the figure.

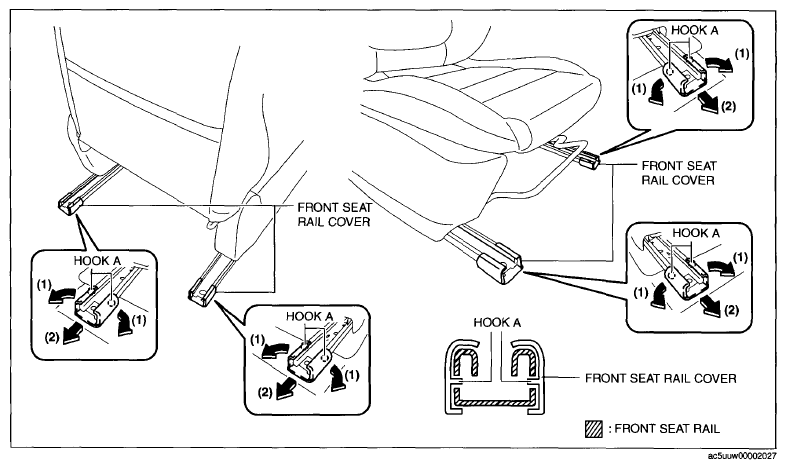

    Fig 1: Removing Front Seat Rail Cover
    G09076861Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
