Front Seat Back Component Removal/Installation: Passenger-Side

  1. Switch the ignition off (LOCK).
  2. Disconnect the negative battery cable and wait for 1 min  . (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  3. Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION .)
  4. Remove the front seat side cover. (See FRONT SEAT SIDE COVER REMOVAL/INSTALLATION .)
  5. Slide hook A in the order of arrows (1), (2), (3) shown in the figure and set the front seat cushion trim aside.
  6. Disconnect the side air bag module connector.

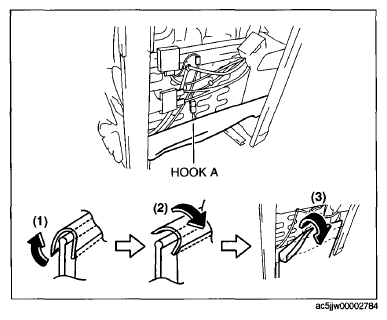

    Fig 1: Disconnecting Side Air Bag Module Connector
    G09076777Courtesy of MAZDA MOTORS CORP.

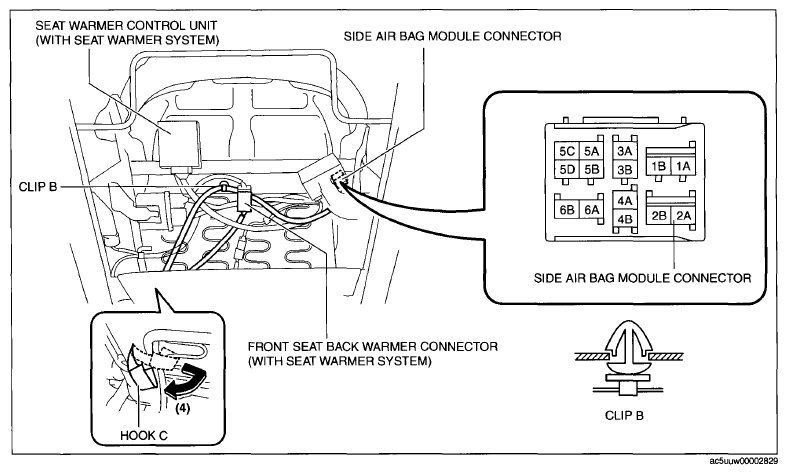

    Fig 2: Front Seat Back Warmer Connector End View
    G09076778Courtesy of MAZDA MOTORS CORP.
  7. Disconnect the front seat back warmer connector, (with seat warmer system)
  8. Disengage clip B.
  9. Set hook C aside in the direction of the arrow (4) shown in the figure.
  10. Remove the bolts A, then remove the front seat back component.

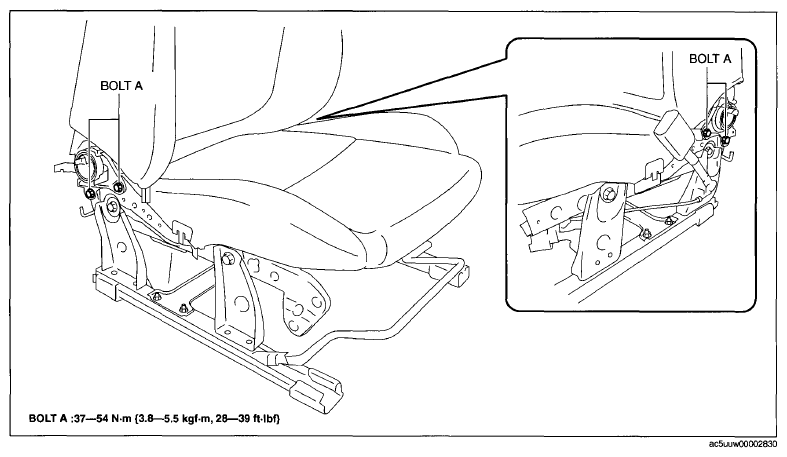

    Fig 3: Front Seat Back Component Mounting Bolts With Torque Specifications
    G09076779Courtesy of MAZDA MOTORS CORP.
  11. Install in the reverse order of removal.
