Shift Panel Removal/Installation: ATX

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the shift lever knob. (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
  3. Take the shaded area, and pull up the shift panel in the direction of the arrow (1) shown in the figure.
  4. Detaching clips, hook.

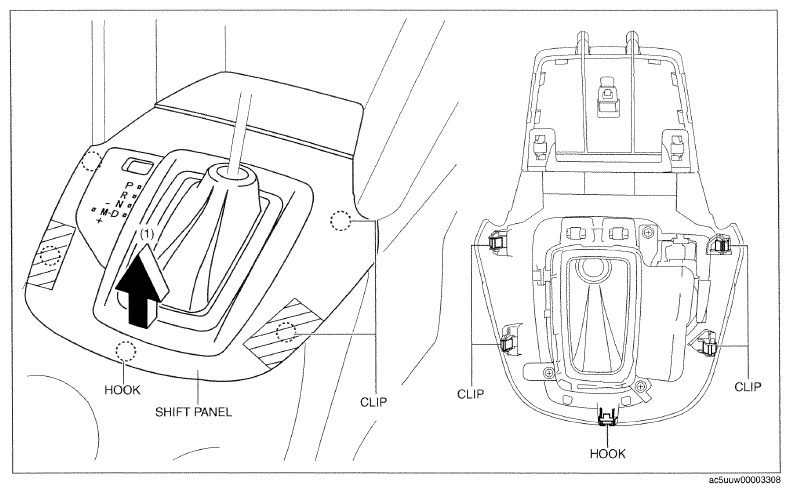

    Fig 1: Removing Shift Panel (ATX)
    G09761655Courtesy of MAZDA MOTORS CORP.
  5. Pull the shift panel in the direction of the arrow (2) shown in the figure, while remove guides.

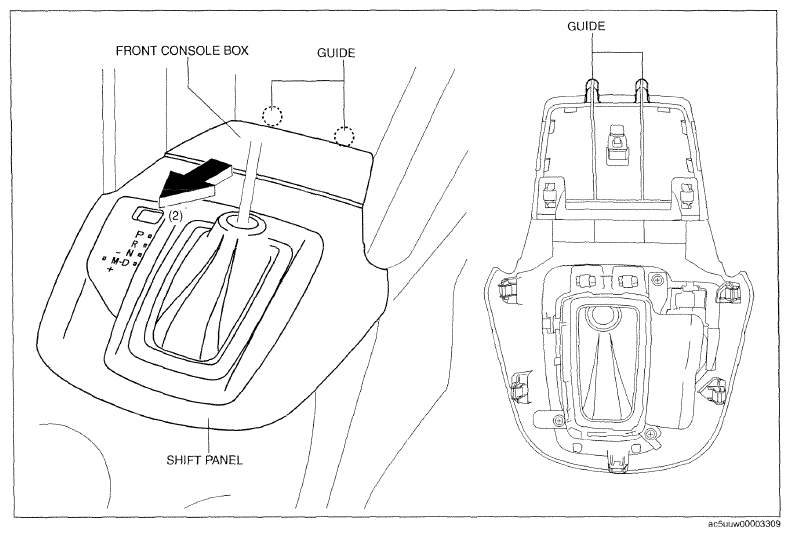

    Fig 2: Pulling Shift Panel
    G09761656Courtesy of MAZDA MOTORS CORP.
  6. Remove the shift panel and front console box as a single unit.
  7. Disconnect the connector.
  8. Detaching clips.

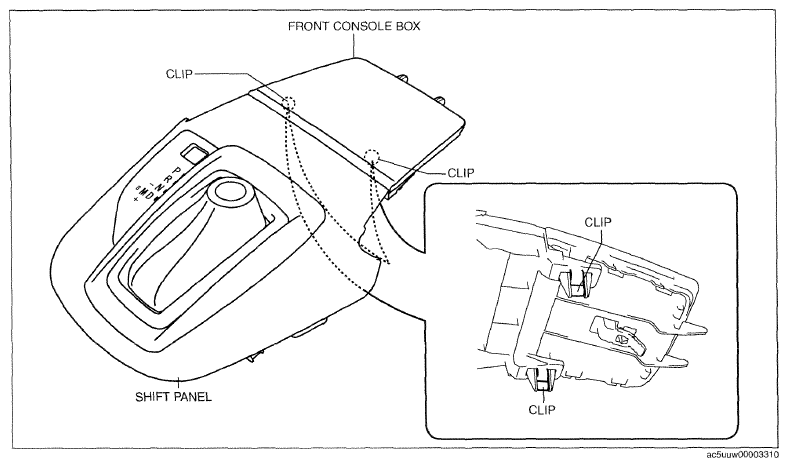

    Fig 3: Identifying Front Console Box Clips
    G09761657Courtesy of MAZDA MOTORS CORP.
  9. Remove the front console box from shift panel.
  10. Install in the reverse order of removal.
