Power Window Subswitch Removal Note

  1. Pull the edge of power window subswitch cover in the direction of arrow (1) and detach the tab.

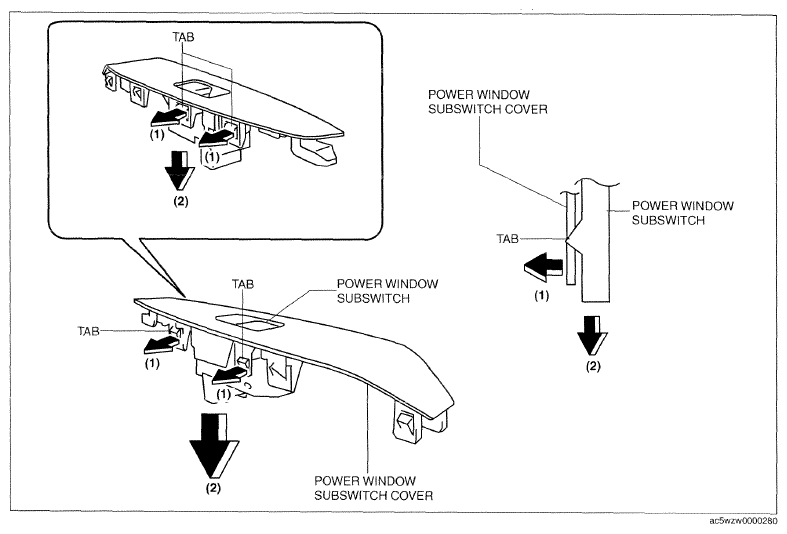

    Fig 1: Pulling Power Window Subswitch
    G09761685Courtesy of MAZDA MOTORS CORP.
  2. Remove the power window subswitch in the direction of arrow (2) shown in the figure.
