Rear Door Trim Disassembly/Assembly: Notes

  1. Disassemble in the order shown in the figure.

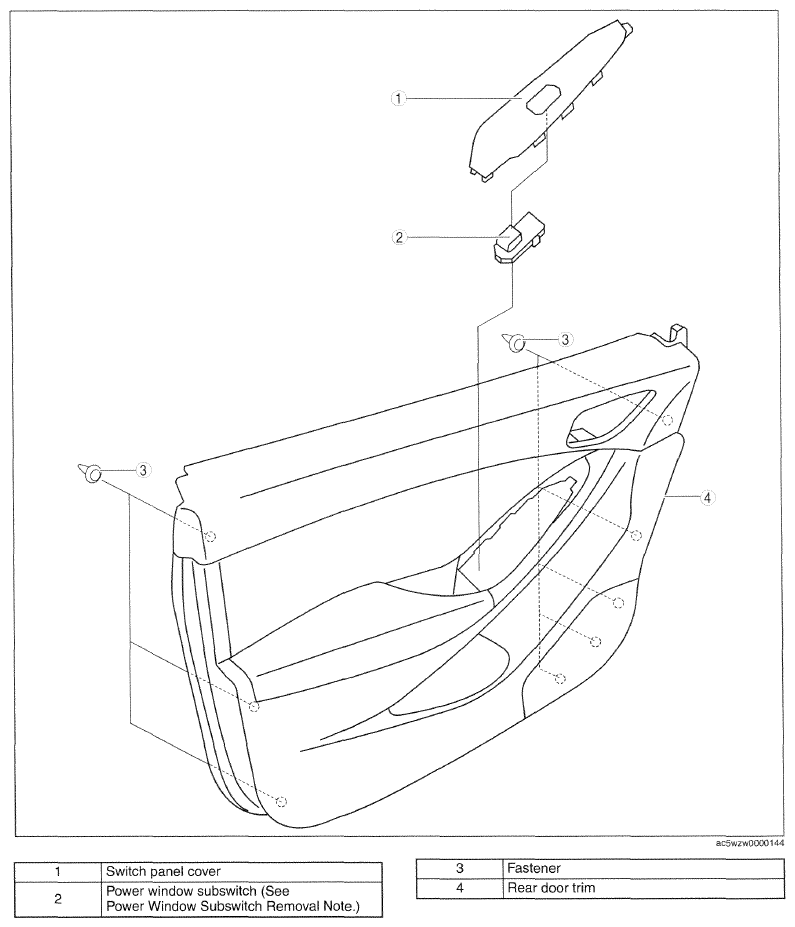

    Fig 1: Identifying Rear Door Trim Components
    G09761684Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
