Rear Console Disassembly/Assembly

  1. Disassemble in the order indicated in the table.

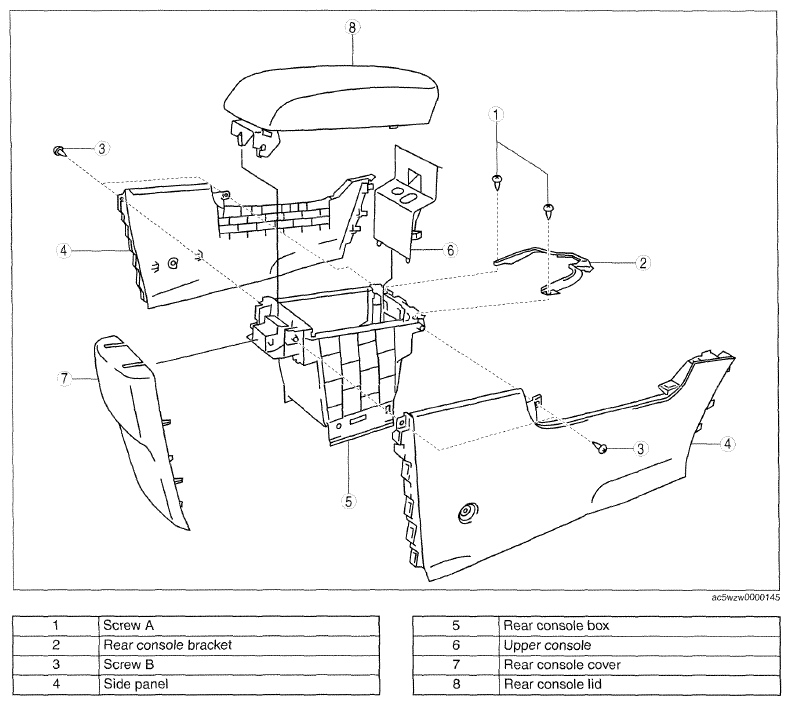

    Fig 1: Identifying Rear Console Components
    G09761667Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
