Liftgate Recess Removal/Installation

  1. Insert a tape-wrapped flathead screwdriver in the position indicated by the arrow in the figure and detach hooks A.

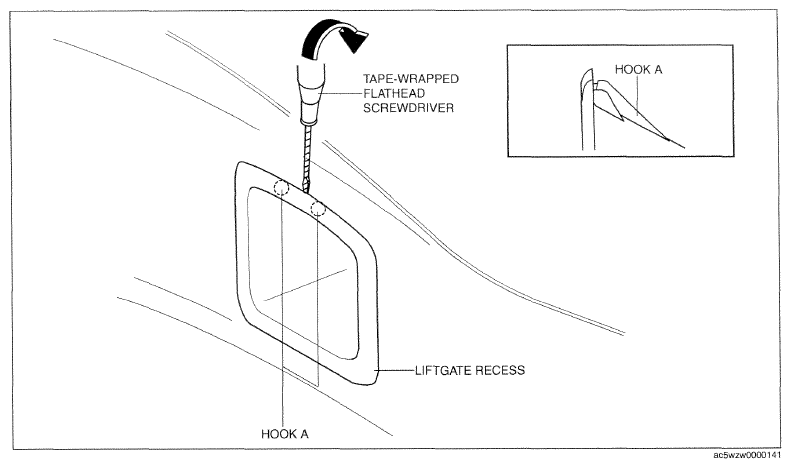

    Fig 1: Removing Liftgate Recess
    G09761624Courtesy of MAZDA MOTORS CORP.
  2. Remove the liftgate recess in the direction of the arrow shown in the figure avoiding hooks B.

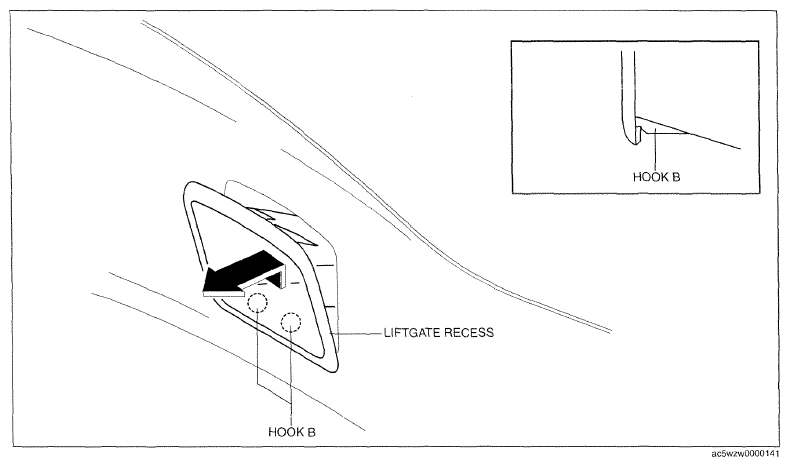

    Fig 2: Removing Liftgate
    G09761625Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
