Audio Unit Removal/Installation: Installation

NOTE:

• When installing the audio unit, the audio unit could interfere with the climate control unit and scratch the climate control unit. Perform the servicing by spreading a cloth in the position indicated in the figure.

Fig 1: Identifying Clean Cloth

Courtesy of MAZDA MOTORS CORP.

1. Connect all the connectors.
2. Temporarily position the audio unit on the ribs and align the hole positions of the instrument panel with clips.
   Fig 2: Identifying Connectors (With And Without Color LCD)

   Courtesy of MAZDA MOTORS CORP.

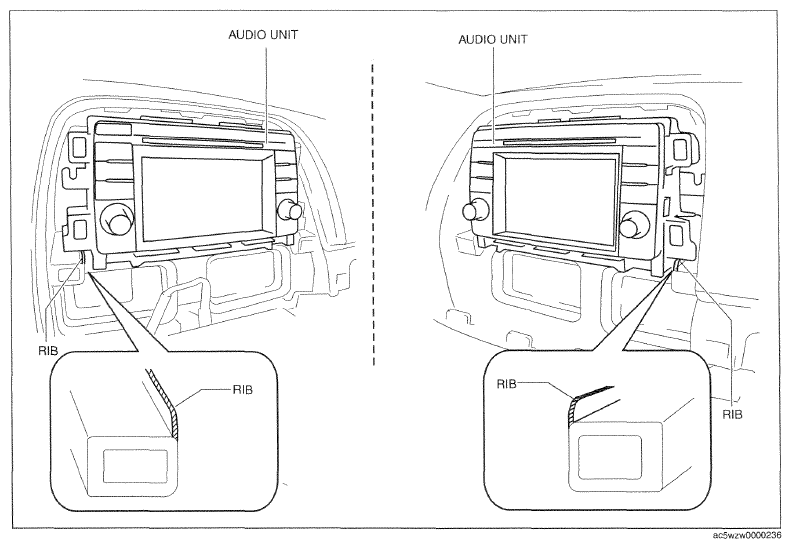

   Fig 3: Identifying Audio Unit And RIB Surface

   Courtesy of MAZDA MOTORS CORP.
3. Press the audio unit in the position shown in the figure and engage clips to the instrument panel.
   CAUTION:

   • If the audio unit switch area and screen are pressed it could cause a malfunction.
   Fig 4: Identifying Audio Unit Instrument Panel (With And Without Color Display)

   Courtesy of MAZDA MOTORS CORP.
4. Install the screws.
5. Install the bolt.
6. Install the Decoration panel. (See DECORATION PANEL REMOVAL/INSTALLATION .)
7. Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
   Fig 5: Audio Unit, Mounting Screws And Bolts With Torque Specifications

   Courtesy of MAZDA MOTORS CORP.
