Hazard Warning Switch Removal/Installation
WARNING: This page is about a different car, the 2013 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
- Remove the decoration panel. (See DECORATION PANEL REMOVAL/INSTALLATION ).

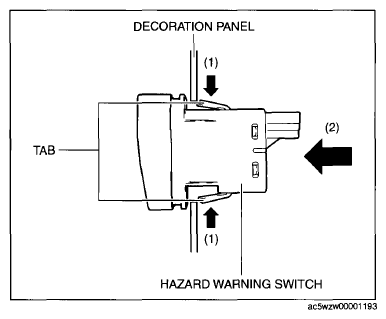

- While pressing the hazard warning switch tab in the direction of the arrow (1) shown in the figure, press the hazard warning switch in the direction of the arrow (2) shown in the figure to detach the hazard warning switch tabs from the decoration panel.

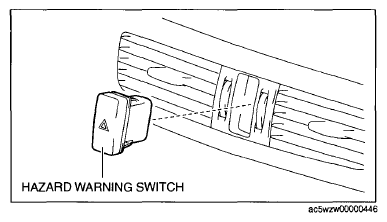

- Remove the hazard warning switch.
- Install in the reverse order of removal.
