Front Fog Light Removal/Installation

WARNING: This page is about a different car, the 2013 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
Remove the screws and bolt.

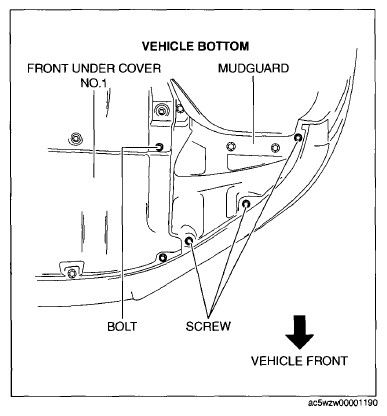

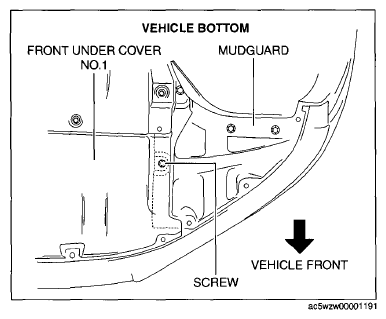

Fig 1: Identifying Front Under Cover, Mudgaurd And Screws
Pull up the front under cover No.1 and remove the mudguard screw shown in the figure.

Fig 2: Removing Front Under Cover, Mudgaurd And Screws
Disconnect the connector.

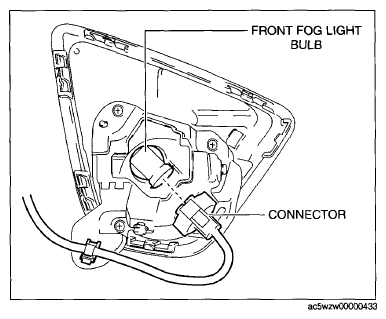

Fig 3: Identifying Front Fog Light Bulb And Connectors
While pressing the clip tab in the direction of the arrow (1) shown in the figure, press the clip in the direction of the arrow (2) shown in the figure to detach the clip tab and bracket.

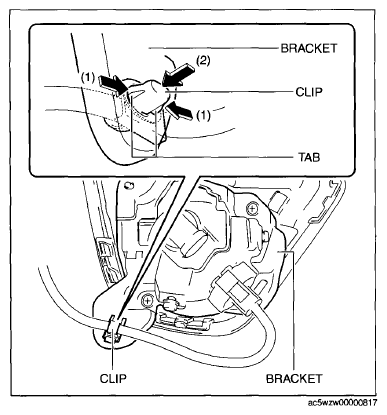

Fig 4: Pressing Clip Tab
Remove the clip.

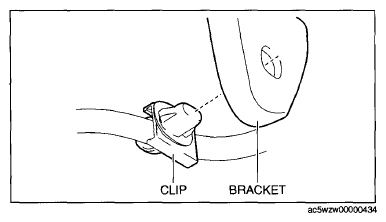

Fig 5: Identifying Bracket And Clip
Remove the screws.

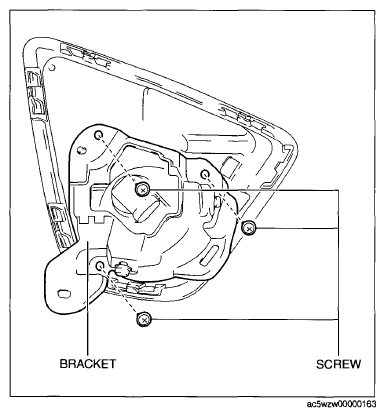

Fig 6: Identifying Bracket And Screws
Remove the front fog light and bracket.

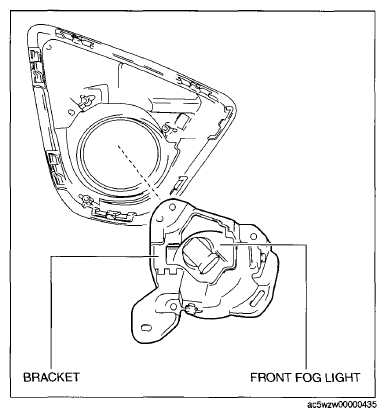

Fig 7: Identifying Front Fog Light And Bracket
Remove the bolt and screw.

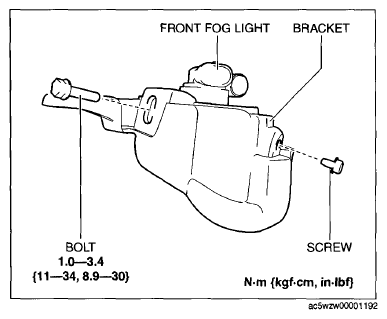

Fig 8: Front Fog Light And Bracket, Bolt, Screw With Torque Specifications
Remove the front fog light.
Install in the reverse order of removal.
Adjust the front fog light aiming. (See FRONT FOG LIGHT AIMING ).

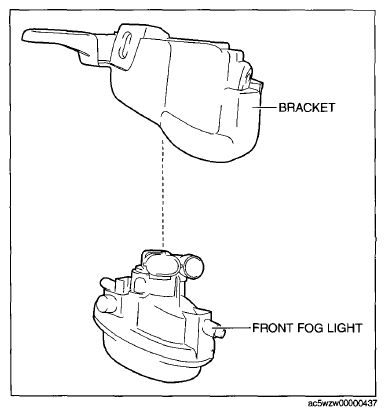

Fig 9: Front Fog Light And Bracket
