Front Fog Light Bulb Removal/Installation
WARNING: This page is about a different car, the 2013 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).

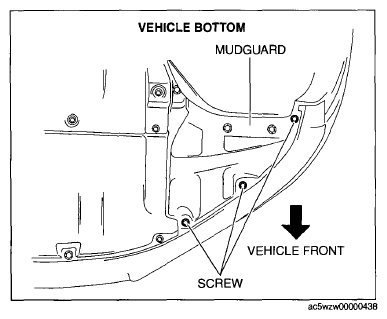

- Remove the mudguard screws.

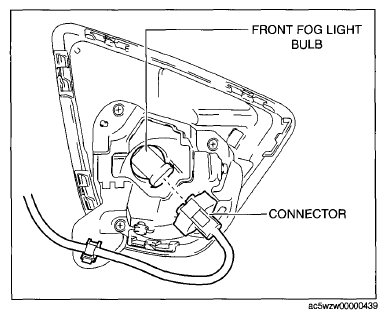

- Disconnect the connector.

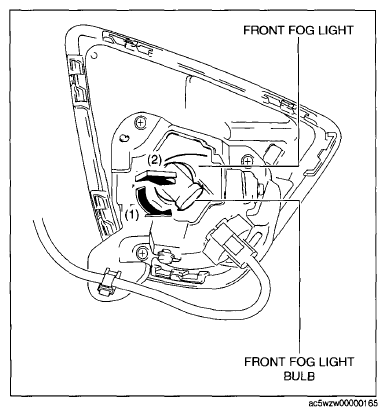

- Rotate the front fog light bulb in the direction of the arrow (1) shown in the figure and remove it from the front fog light in the direction of the arrow (2) shown in the figure.
- Install in the reverse order of removal.
