Back-Up Light Bulb Removal/Installation

WARNING: This page is about a different car, the 2013 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
  2. Insert a tape-wrapped flathead screwdriver into J the service hole in the position shown in the figure.
  3. Move the flathead screwdriver in the direction of the arrow (1) shown in the figure, pull out the service hole cover from the liftgate, and detach the service hole cover tabs and liftgate connections.

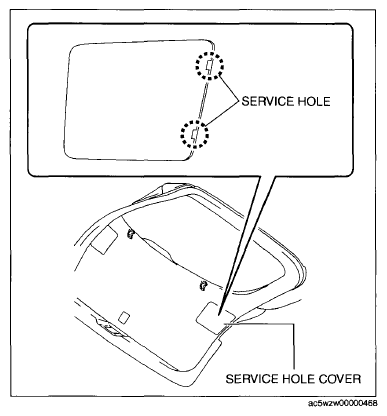

    Fig 1: Identifying Service Hole Cover
    G09077428

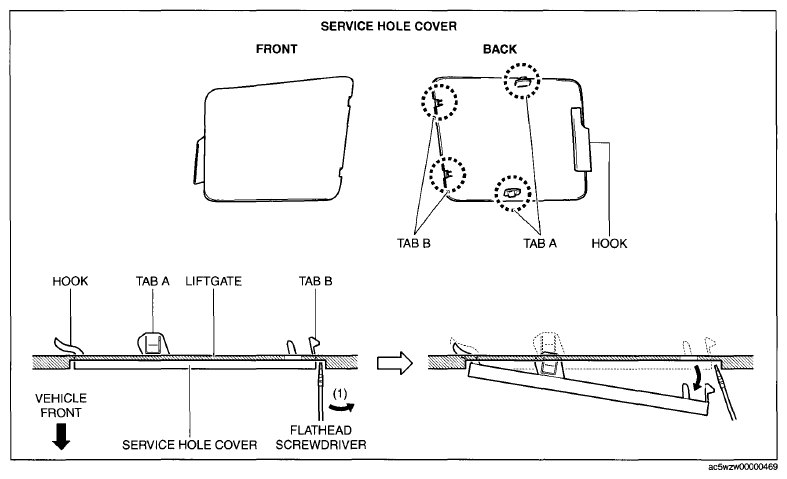

    Fig 2: Detaching Service Hole Cover Tabs And Liftgate Connections
    G09077429
  4. Pull out the service hole cover in the direction of the arrow (2) shown in the figure and pull out the service hole cover hook from the liftgate.
  5. Remove the service hole cover.

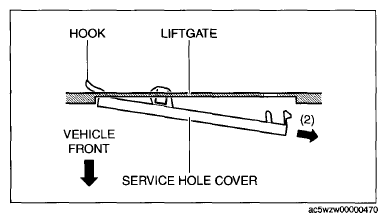

    Fig 3: Pulling Out Service Hole Cover Hook From Liftgate
    G09077430
  6. Rotate the socket in the direction of the arrow (3) shown in the figure and remove it from the liftgate light in the direction of the arrow (4) shown in the figure.

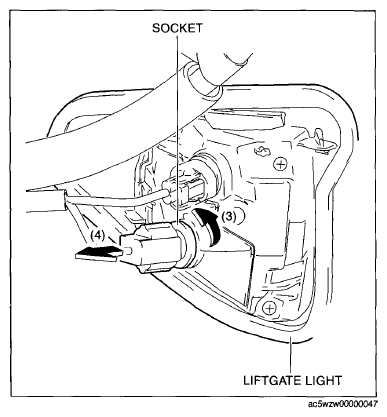

    Fig 4: Removing Socket From Front Liftgate Light
    G09077431
  7. Remove the back-up light bulb.
  8. Install in the reverse order of removal.

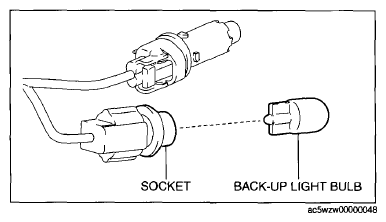

    Fig 5: Identifying Back-Up Light Bulb And Socket
    G09077432
