Adaptive Front Lighting System (AFS) Off Switch Inspection
WARNING: This page is about a different car, the 2013 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
- Remove the switch panel. (See SWITCH PANEL REMOVAL/INSTALLATION ).

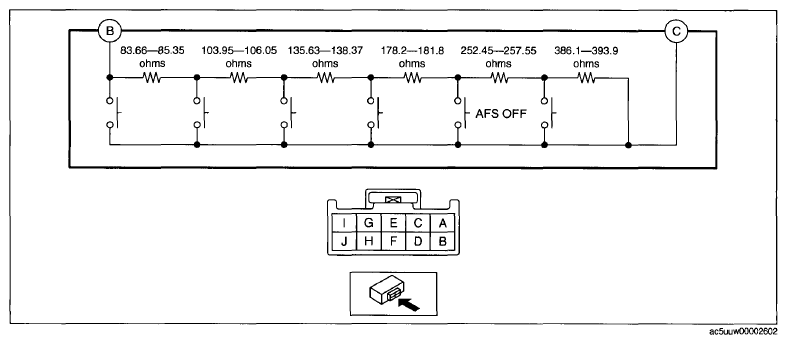

- Verify that the resistance between AFS OFF switches B and C is as indicated in the table.
Test condition Resistance (ohms) AFS OFF switch pressed 501.44-511.57 All switches released 1,139.99-1,163.02 - If the resistance can be verified as indicated in the table, go to the next step
- If not as indicated in the table, replace the cluster switch.

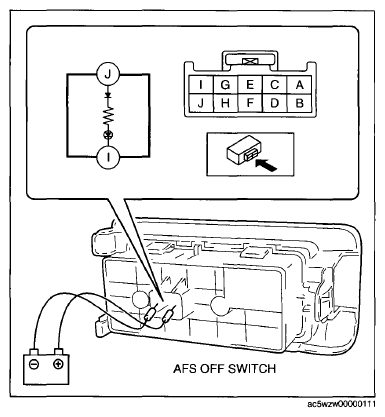

- Apply battery positive voltage to AFS OFF switch terminal J, and connect terminal I to ground.
- Verify that the LED illuminates.
- If the LED does not illuminate, replace the cluster switch.
