Lumbar Support Motor Inspection
WARNING:
- Handling a side air bag improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the service warnings/cautions in the Service information before handling the front seat (side air bag integrated). (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) (See AIR BAG SYSTEM SERVICE WARNINGS [STANDARD DEPLOYMENT CONTROL SYSTEM] .) (See AIR BAG SYSTEM SERVICE CAUTIONS [STANDARD DEPLOYMENT CONTROL SYSTEM] .)
- Disconnect the negative battery cable and wait for 1 min . (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
- Slide hook A in the order of arrows (1), (2), (3) shown in the figure and disconnect them from hook B.
- Open fasteners C.
- Disconnect the lumber support motor connector.

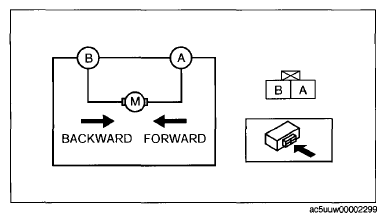

- Apply battery positive voltage to the lumber support motor terminals and inspect the front seat back operation.
- If not as specified, replace the lumber support motor. (See
LUMBAR SUPPORT MOTOR REMOVAL/INSTALLATION .)
Front seat back operation Connection A B Forward B+ GND Backward GND B+
- If not as specified, replace the lumber support motor. (See
LUMBAR SUPPORT MOTOR REMOVAL/INSTALLATION .)
