Air Hose Installation Note

  1. Install the air hose as shown below.

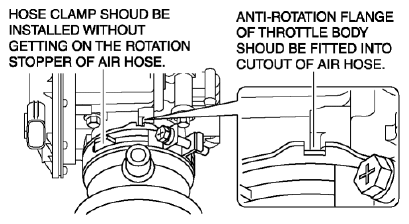

    Fig 1: Installing Air Hose
    G08150146Courtesy of MAZDA MOTORS CORP.
