Intake-Air System Location Index

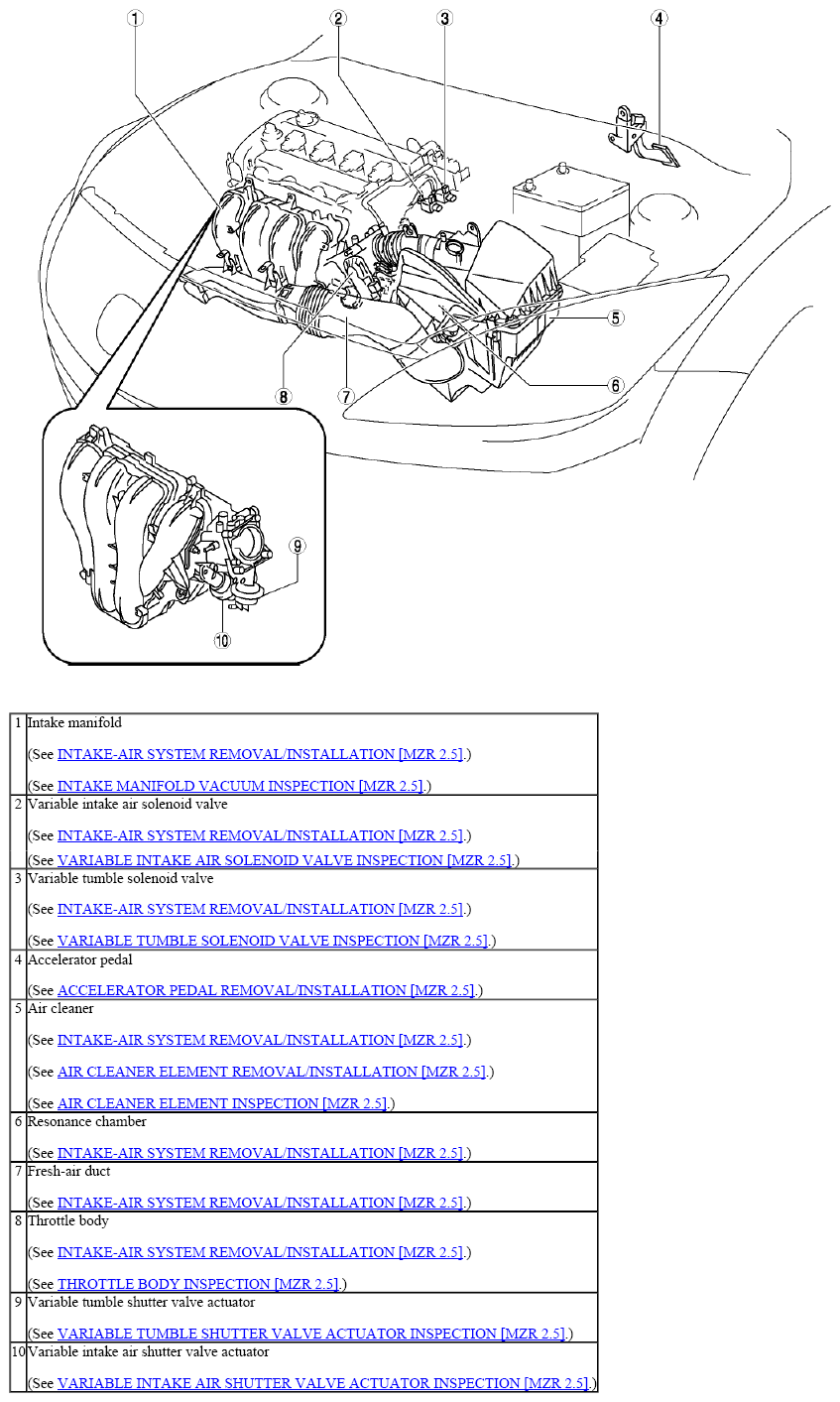

Fig 1: Identifying Intake-Air System Component Locations

G08150140

Courtesy of MAZDA MOTORS CORP.
