Oil Cooler Installation Note

  1. Align one of the positioning tabs on the oil cooler as shown below to the oil filter adapter hole, and install the oil cooler.

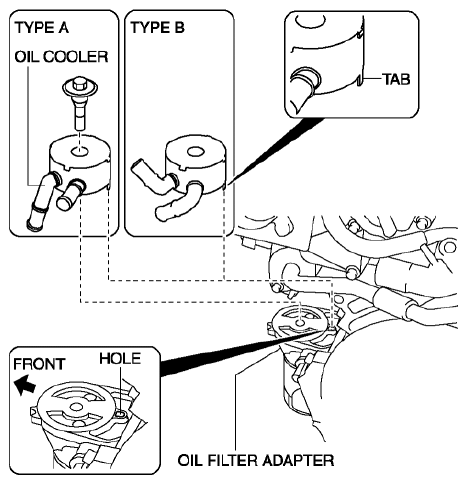

    Fig 1: Oil Cooler
    G08150102Courtesy of MAZDA MOTORS CORP.
