Third-Row Seat Back Trim Removal/Installation

Open the cargo net hook cover, remove the bolt.

Fig 1: Opening Cargo Net Hook Cover
Courtesy of MAZDA MOTORS CORP.
Remove the cargo net hook and cargo net hook cover.

Fig 2: Removing Cargo Net Hook And Cargo Net Hook Cover
Courtesy of MAZDA MOTORS CORP.

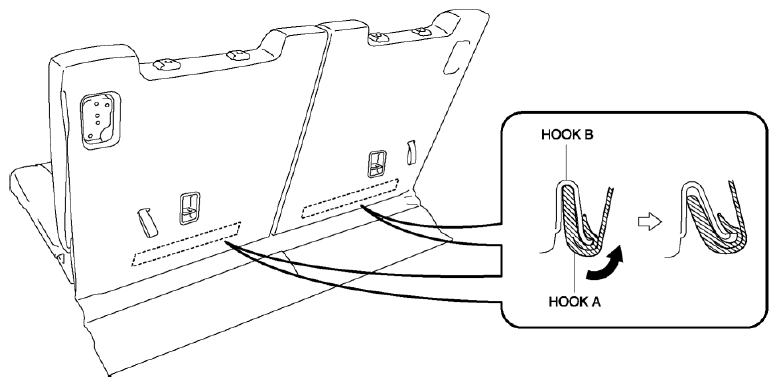

Slide the hook A shown below to detach it from the hook B.

Fig 3: Sliding Hooks
Courtesy of MAZDA MOTORS CORP.

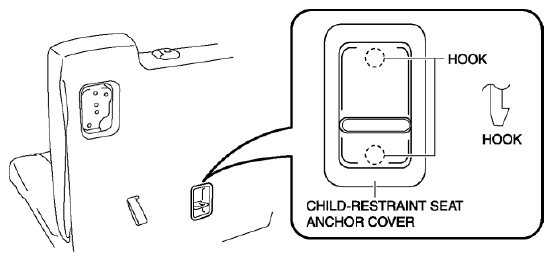

Remove the child-restraint seat anchor covers.

Fig 4: Removing Child-Restraint Seat Anchor Covers
Courtesy of MAZDA MOTORS CORP.

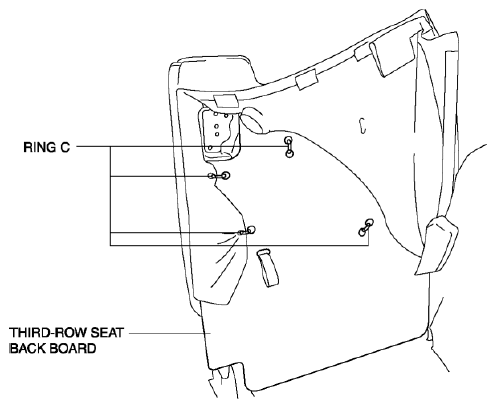

Remove the rings C, remove the third-row seat back board.
CAUTION:
- Be careful not to damage the ring C when removing/installing it. If a damaged ring C is used, it could result in improper installation of the second-row seat cushion trim and the second-row cushion pad.
- If the ring C is damaged, replace the ring C with a new one.
Fig 5: Identifying Third-Row Seat Back Board And Rings C
Courtesy of MAZDA MOTORS CORP.
Remove the screws.

Fig 6: Releasing Pole Guide Tabs
Courtesy of MAZDA MOTORS CORP.

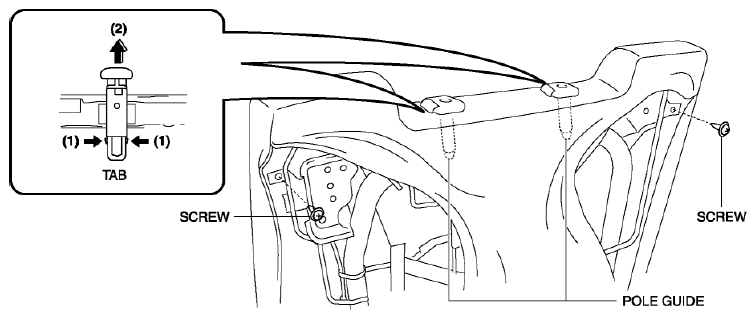

Release the pole guide tabs in the direction of arrow (1) shown, then pull the pole guide out in the direction of arrow (2).

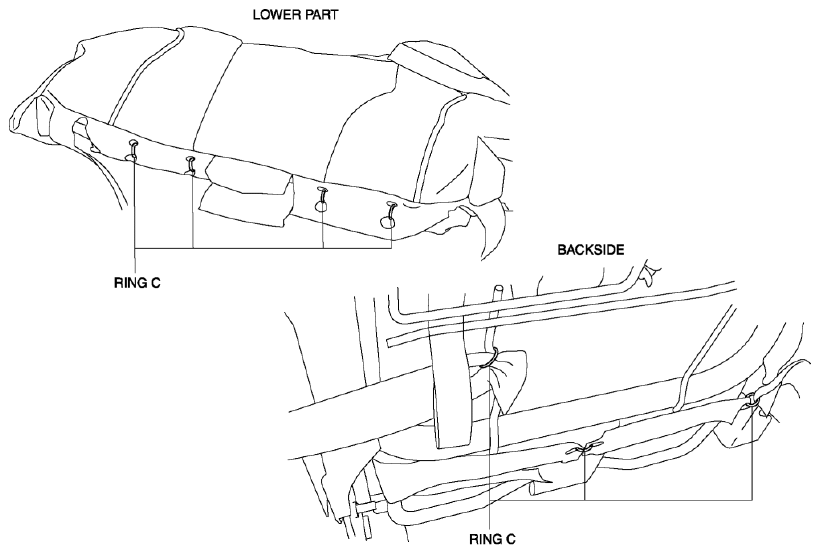

Remove the rings C from the third-row seat back lower part and backside, then remove the third-row seat back trim and the third-row seat back pad from the third-row seat back frame.
CAUTION:
- Be careful not to damage the ring C when removing/installing it. If a damaged ring C is used, it could result in improper installation of the second-row seat cushion trim and the second-row cushion pad.
- If the ring C is damaged, replace the ring C with a new one.
Fig 7: Releasing Pole Guide Tabs
Courtesy of MAZDA MOTORS CORP.

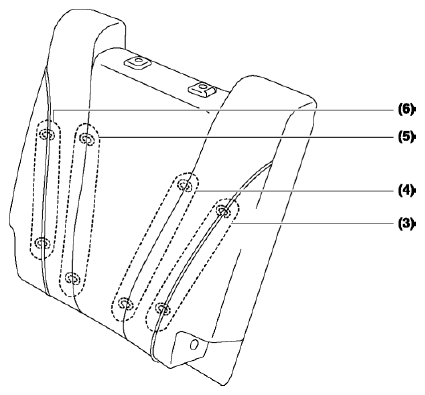

Remove the rings C in the order of (3), (4), (5), (6), then remove the third-row seat back trim from the third-row seat back pad.
CAUTION:
- Be careful not to damage the ring C when removing/installing it. If a damaged ring C is used, it could result in improper installation of the second-row seat cushion trim and the second-row cushion pad.
- If the ring C is damaged, replace the ring C with a new one.
Fig 8: Identifying Second-Row Seat Cushion Pad And Rings C
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
