Third-Row Seat Back Component Removal/Installation

  1. Remove the third-row seat. (See THIRD-ROW SEAT REMOVAL/INSTALLATION .)
  2. Remove the covers, then remove the bolts.

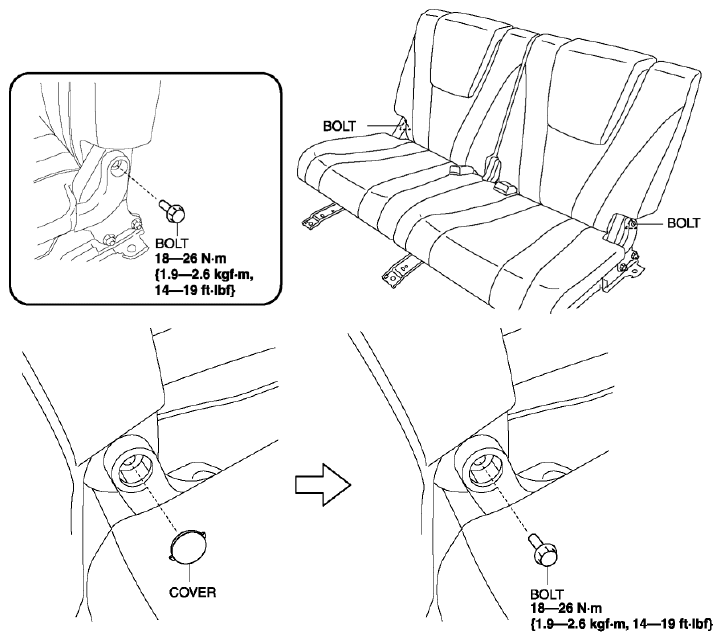

    Fig 1: Third-Row Seat Back Component Covers And Bolts With Torque Specifications
    G08152978Courtesy of MAZDA MOTORS CORP.
  3. Remove the screws and the nut, then remove the third-row seat back component.

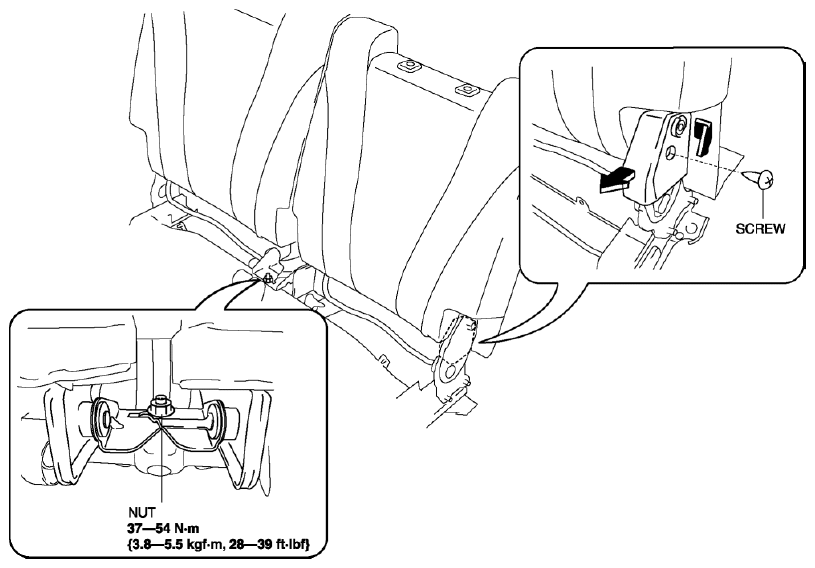

    Fig 2: Third-Row Seat Back, Screws And Nut With Torque Specifications
    G08152979Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
