Second-Row Seat Removal/Installation

Detach the hook A and B, remove the cover.

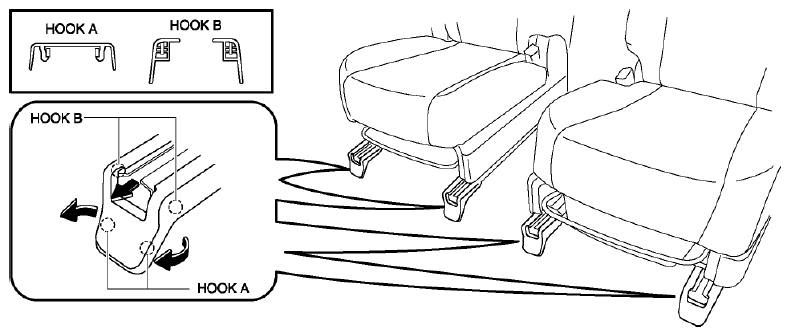

Fig 1: Detaching Second-Row Seat Hook
Courtesy of MAZDA MOTORS CORP.
Remove the bolts in the order of (1), (2), (3), (4) shown below.

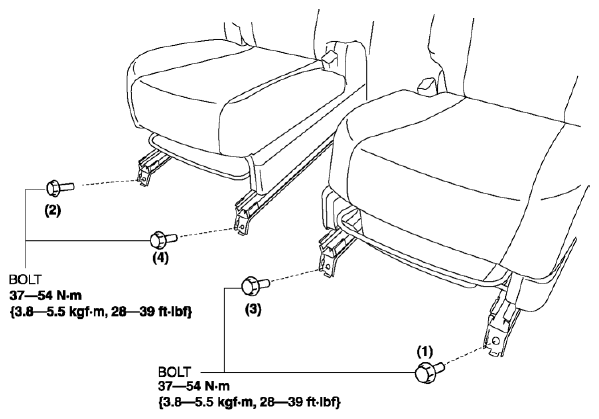

Fig 2: Second-Row Seat Bolts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Detach the hook C, D and E, remove the cover.

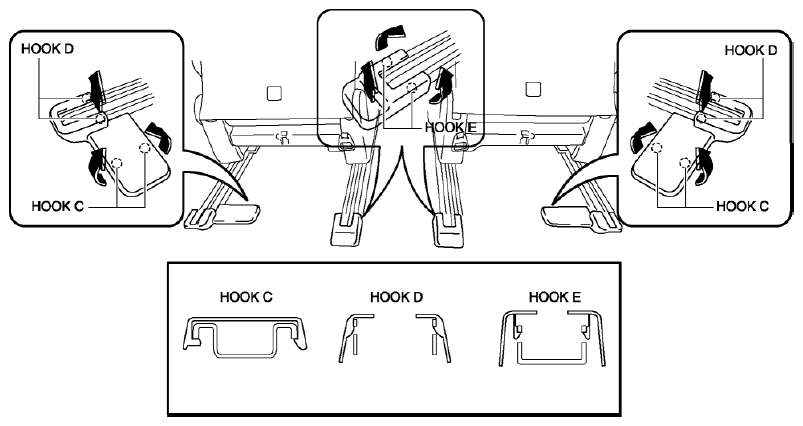

Fig 3: Detaching Second-Row Seat Hook
Courtesy of MAZDA MOTORS CORP.
Remove the bolts in the order of (5), (6), (7), (8) shown below.

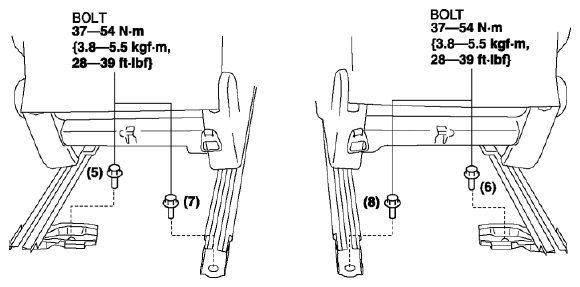

Fig 4: Second-Row Seat Bolts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Take the second-row seat out.
Install in the reverse order of removal.
