Headlight Leveling System

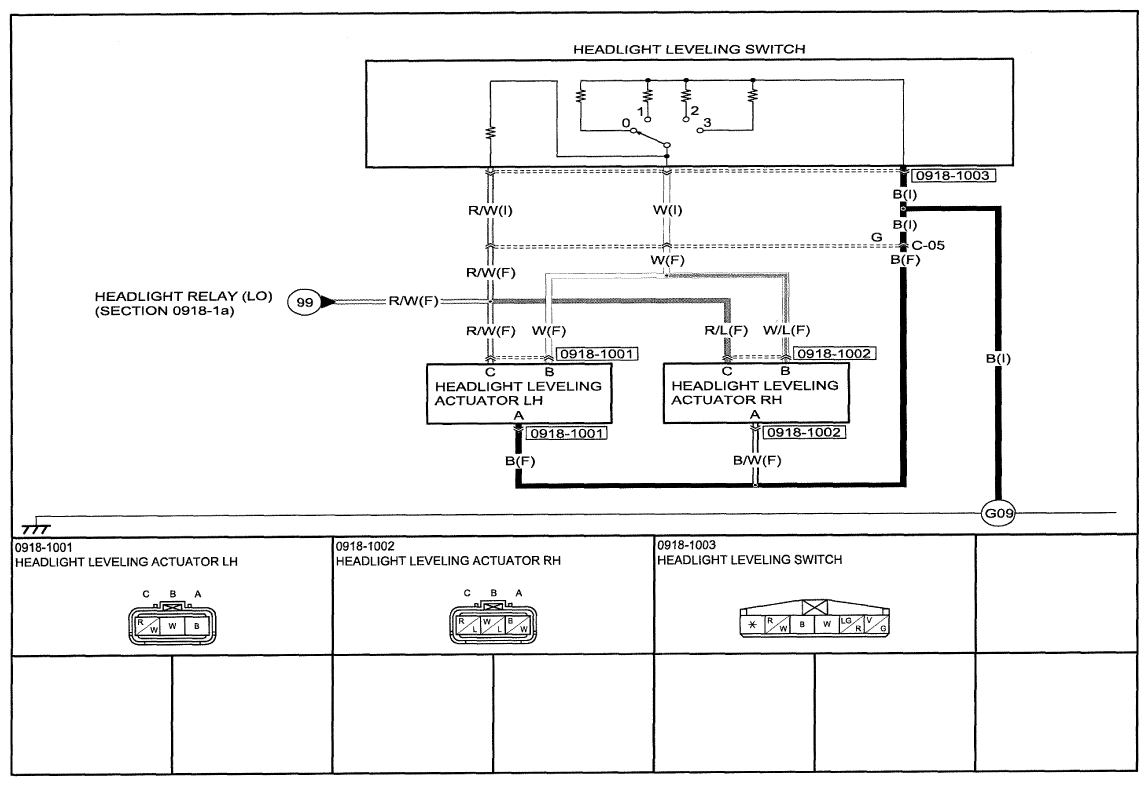

Fig 1: Headlight Leveling System Wiring Diagram - 0918-10 (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

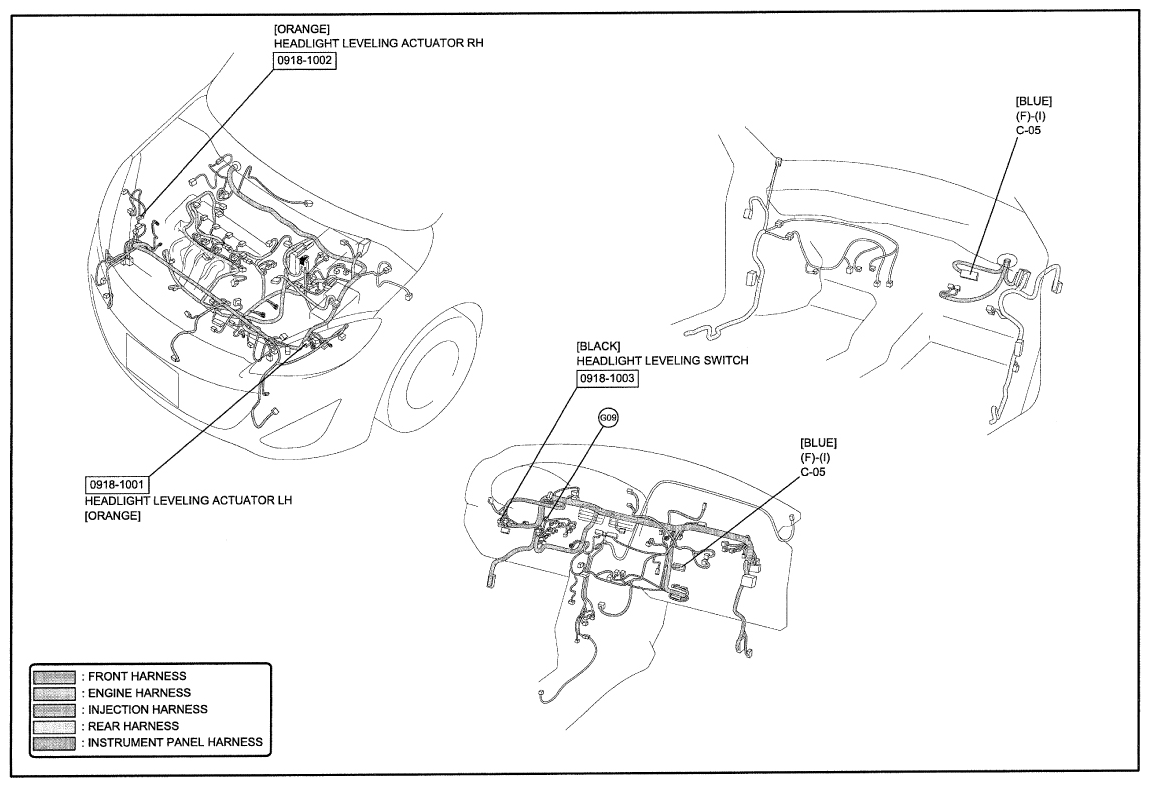

Fig 2: Headlight Leveling System Wiring Diagram - 0918-10 (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
