On-Vehicle Inspection Preparation

When performing the on-vehicle inspection, set the oil cooler out of the way.
1. Disconnect the oil cooler from the transaxle. (See OIL COOLER REMOVAL/INSTALLATION .)
  NOTE:
  - Do not disconnect the oil hose and water hose from the oil cooler and transaxle because the engine is started when performing the on-vehicle inspection.
2. Suspend the oil cooler using rope to secure the disconnected oil cooler.

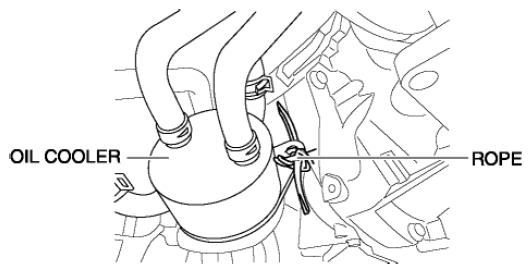

  Fig 1: Suspending Oil Cooler Using Rope
  Courtesy of MAZDA MOTORS CORP.
  CAUTION:
  - To prevent damage to the parts, do not pull the oil hose and water hose excessively.
  - To prevent damage to the parts, do not twist the oil hose and water hose.
  - To prevent part damage, do not allow parts to interfere with the cooling fan.
