Front Heat Duct Removal/Installation: Drive-side

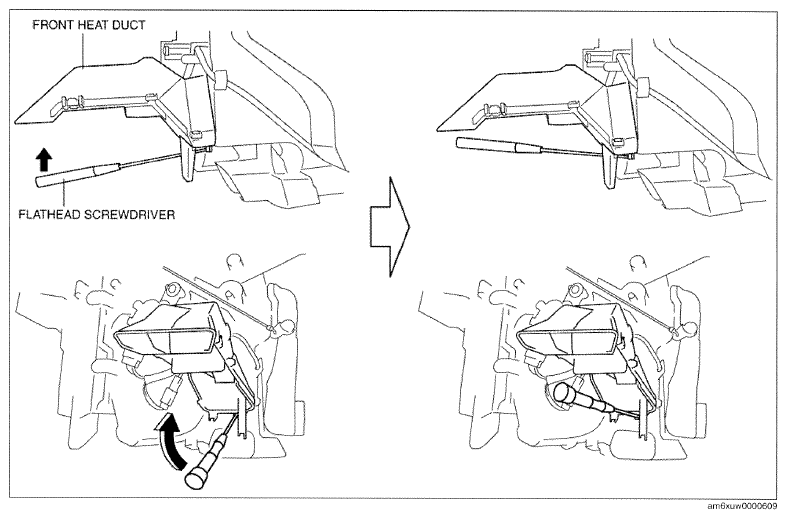

Fig 1: Inserting Flathead Screwdriver In Side Wall

Courtesy of MAZDA MOTORS CORP.

1. Remove the side wall (driver-side). (See SIDE WALL REMOVAL/INSTALLATION .)
2. Insert a flathead screwdriver in the position shown in the figure, lift it up in the direction of the arrow.

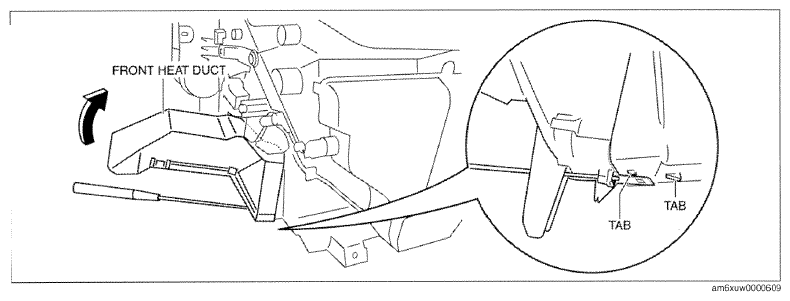

   Fig 2: Removing Side Wall (Driver-Side)

   Courtesy of MAZDA MOTORS CORP.
3. Detach the tab while lifting up the front heat duct in the direction of the arrow.
4. Remove the front heat duct.
5. Install in the reverse order of removal.

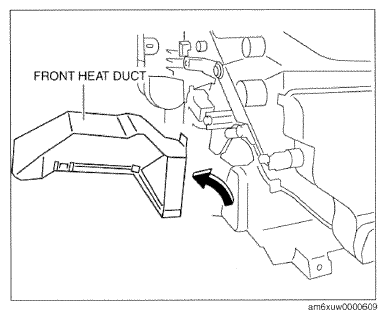

   Fig 3: Detaching Tab

   Courtesy of MAZDA MOTORS CORP.
