Airflow Mode Actuator Removal/Installation (Auto A/C): Notes

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
Disconnect the airflow mode actuator connector.
Remove the screw.
Remove the airflow mode actuator.

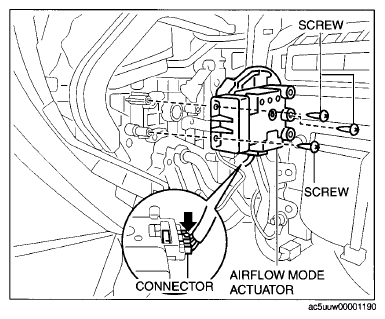

Fig 1: Airflow Mode Actuator
Courtesy of MAZDA MOTORS CORP.
Remove the airflow mode main link.

Fig 2: Airflow Mode Actuator And Airflow Mode Main Link
Courtesy of MAZDA MOTORS CORP.
Remove the bracket.
Install in the reverse order of removal. (See AIRFLOW MODE ACTUATOR INSTALLATION NOTE .)

Fig 3: Identifying Airflow Mode Actuator Bracket
Courtesy of MAZDA MOTORS CORP.
