With Center Display

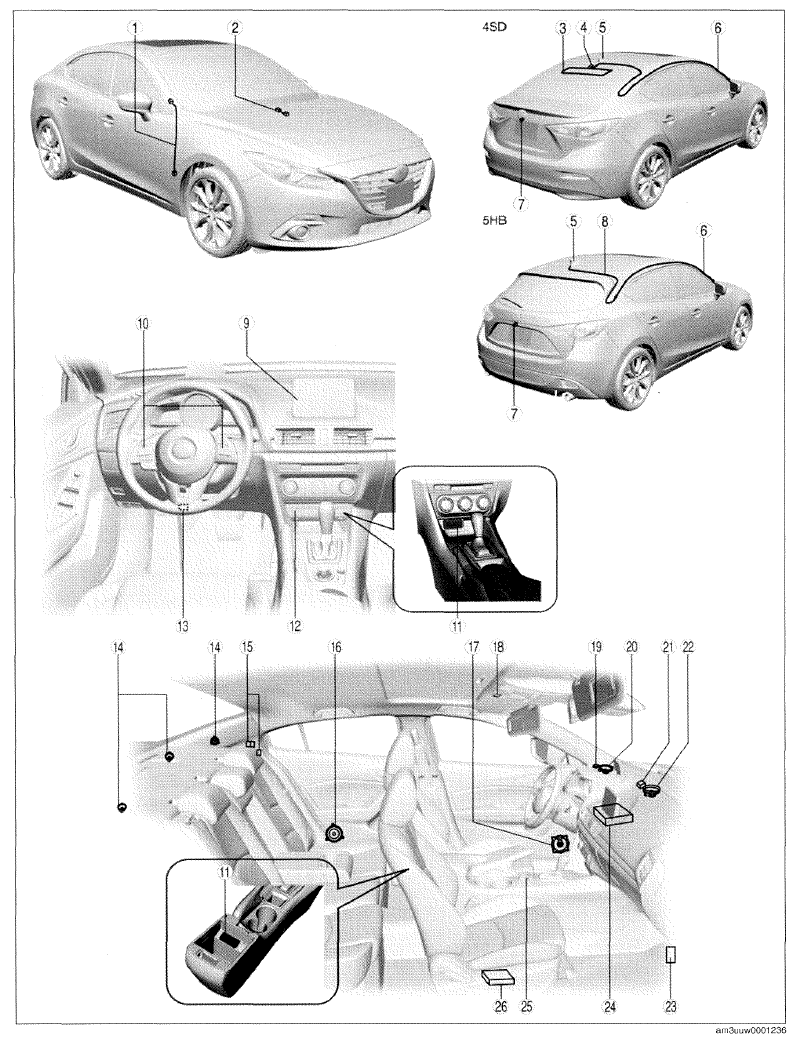

Fig 1: Entertainment Components Location - With Center Display (1 Of 2)
G09784150Courtesy of MAZDA MOTORS CORP.

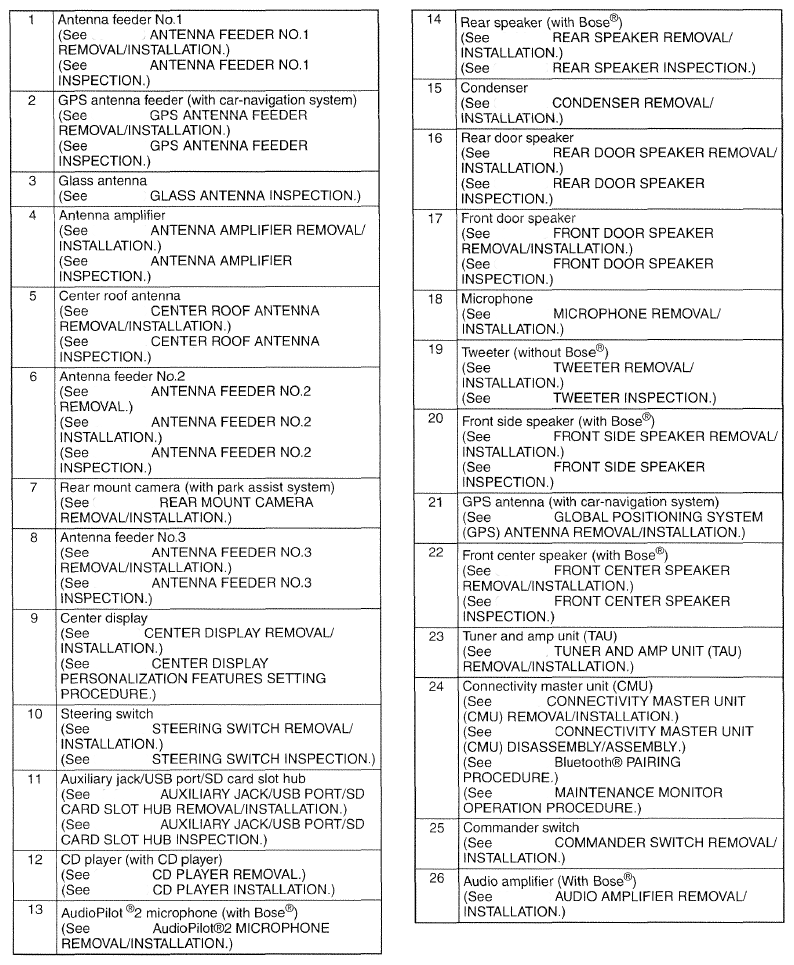

Fig 2: Entertainment Components Location - With Center Display (2 Of 2)
G09784151Courtesy of MAZDA MOTORS CORP.
